Turck BI1-EH08/6.5K-2AP6-225/250-FSF4.4K/ S922
SKU: CS3787720MPN: BI1-EH08/6.5K-2AP6-225/250-FSF4.4K/ S922Alternate Part #s: 1604602TUR-BI1-EH08/6.5K-2AP6-225/250-FSF4.4K/S922UPC/EAN: 4047101146783
1604602 - FERRITE, BARREL, DC, PIGTAIL M
Contact us for pricing and availability
Product Details
Inductive Sensor

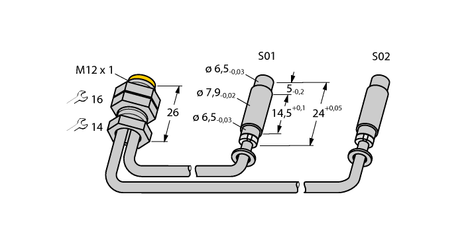

- FSF monitoring kit with two connected EH08/E6.5 sensors
- Connection via joint M12 x 1 male
- 2 x NO contact, PNP output
- DC 4-wire, 10…30 VDC
Attributes
| Ambient Temperature | -25…+100 °C |
| Customs Tariff Number | 85365019900.0000 |
| Design | Monitoring kit for power clamps |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, 1.4301 (AISI 304) |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 1 mm |
| Switching Frequency | 0.030 kHz |
Specifications
| SKU | CS3787720 |
|---|---|
| MPN | BI1-EH08/6.5K-2AP6-225/250-FSF4.4K/ S922 |
| Alternate Part #s | 1604602, TUR-BI1-EH08/6.5K-2AP6-225/250-FSF4.4K/S922 |
| UPC/EAN | 4047101146783 |
