All ProductsTurck

Turck BI1-EG05-AP6X-0.2-PSG3F

SKU: CS3787614MPN: BI1-EG05-AP6X-0.2-PSG3FAlternate Part #: 4609782

4609782 - FERRITE, BARREL, DC, PIGTAIL M

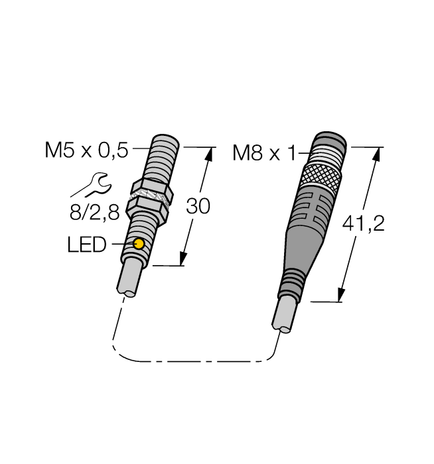

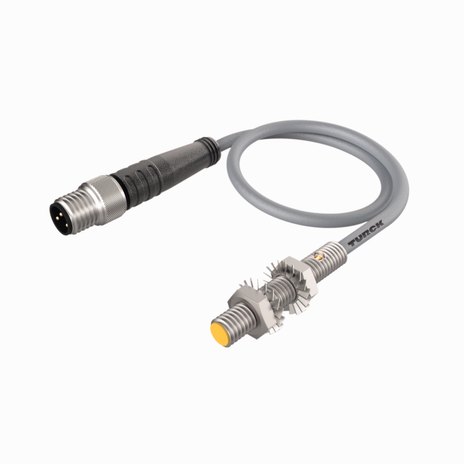

Turck BI1-EG05-AN6X-0.2-PSG3M, BI1-EG05-AN6X-0.2-PSG4M, BI1-EG05-AP6X-0.2-PSG3F, BI1-EG05-AP6X-0.2-PSG3M
Turck BI1-EG05-AN6X-0.2-PSG3M, BI1-EG05-AN6X-0.2-PSG4M, BI1-EG05-AP6X-0.2-PSG3F, BI1-EG05-AP6X-0.2-PSG3M
Turck BI1-EG05-AN6X-0.2-PSG3M, BI1-EG05-AN6X-0.2-PSG4M, BI1-EG05-AP6X-0.2-PSG3F, BI1-EG05-AP6X-0.2-PSG3M
Turck BI1-EG05-AN6X-0.2-PSG3M, BI1-EG05-AN6X-0.2-PSG4M, BI1-EG05-AP6X-0.2-PSG3F, BI1-EG05-AP6X-0.2-PSG3M
$189.60
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Threaded barrel, M5 x 0.5
  • Stainless steel, 1.4427 SO
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Pigtail with male end M8 x 1

Attributes

Ambient Temperature -25…+70 °C
Construction Size M5 x 0.5
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable with connector, M8 × 1
Housing Material Stainless steel, 1.4427 SO
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 1 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS3787614
MPNBI1-EG05-AP6X-0.2-PSG3F
Alternate Part #4609782
