Eaton 1555A-6507

Name: Eaton 1555A-6507
Brand: Eaton
SKU: CS370395
Price: 616.40 USD
Availability: OutOfStock

SKU: CS370395MPN: 1555A-6507UPC/EAN: 782113825670

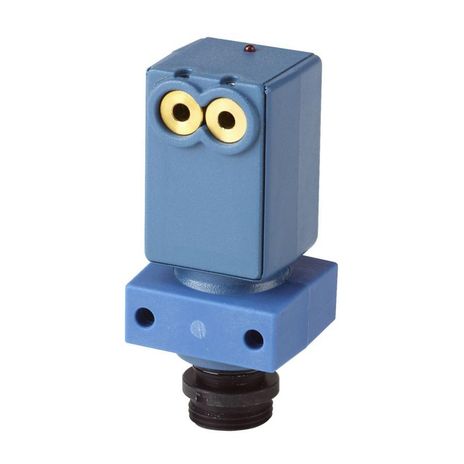

Eaton 55 series photoelectric sensor

Product Details

Eaton 55 Series Photoelectric Sensor, Photoelectric, Sensor distance depends on the fiberoptic cables used, 50 mA max DC, NPN and PNP Open Collector, 50 mA at 30 Vdc, 4 Pin Mini Connector, 10-30 Vdc input, Auto reset short circuit

Attributes

Connection	4-pin mini connector
Contact Configuration	NPN and PNP open collector
Contact Rating	50 mA at 30 Vdc
Enclosure Material	Body: noryl Lens: nylon
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	50 mA
Operating Mode	Fiber-optic
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset short circuit
Sensor Type	Fiberoptic
Switch Type	Photoelectric
