Eaton 1255A-6507

Name: Eaton 1255A-6507
Brand: Eaton
SKU: CS350547
Price: 546.97 USD
Availability: OutOfStock

SKU: CS350547MPN: 1255A-6507UPC/EAN: 782113822242

Eaton 55 series photoelectric sensor

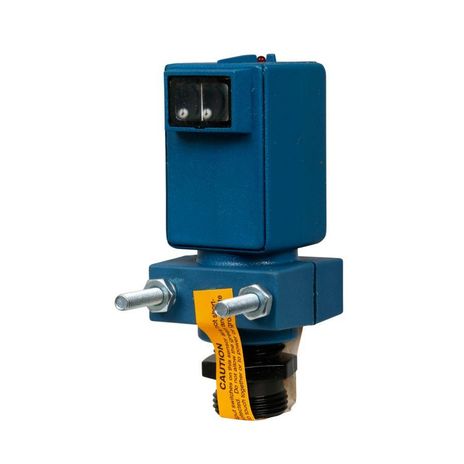

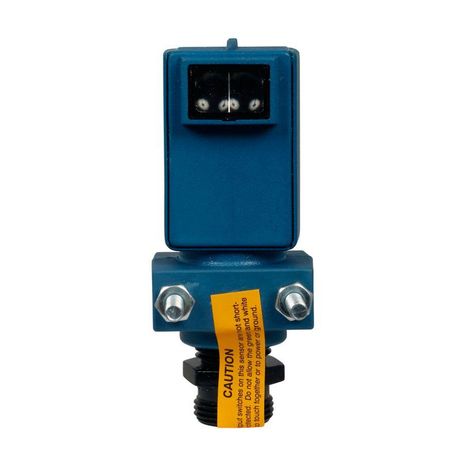

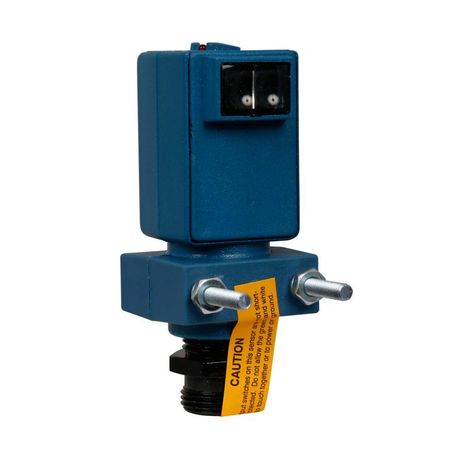

Eaton 1255A-6501, 1255A-6507, 1255A-6511

Product Details

Eaton 55 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 100 Ft., Noryl body, Nylon lens encl., 50 mA max DC, NPN and PNP Open Collector, 50 mA at 30 Vdc, 4 Pin Mini Connector, 10-30 Vdc input, Reverse polarity

Attributes

Connection	4-pin mini connector
Contact Configuration	NPN and PNP open collector
Contact Rating	50 mA at 30 Vdc
Enclosure Material	Body: noryl Lens: nylon
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	50 mA
Operating Mode	Thru-beam
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-22 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity
Sensor Type	Through beam
Switch Type	Photoelectric
