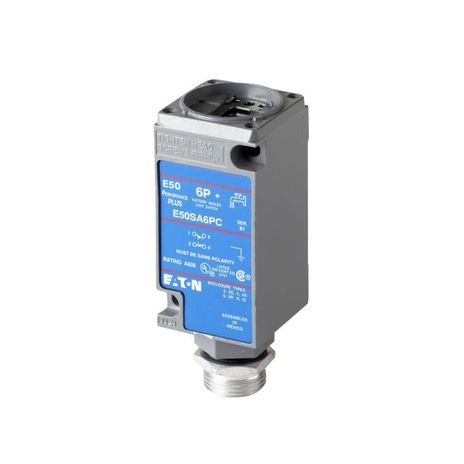

Eaton E50SA6PC

Name: Eaton E50SA6PC
Brand: Eaton
SKU: CS3665129
Price: 418.24 USD
Availability: OutOfStock

SKU: CS3665129MPN: E50SA6PCUPC/EAN: 782113726403

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

Product Details

Eaton E50 Heavy Duty Factory Sealed 6P+ Limit Switch,Mini,10A at 240 Vac,1A at 250 Vdc,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,IP69K,10A,1A,5 pin,Single-pole,-40° to 250°F (-40° to 121°C),E50 Heavy Duty Factory Sealed 6P+

Attributes

Connection	Mini
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240 Vac, 1A at 250 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Number Of Pins	5.0000
Number Of Poles	Single-pole
Operating Temperature Max	250 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Series	E50 heavy duty factory sealed 6P+
