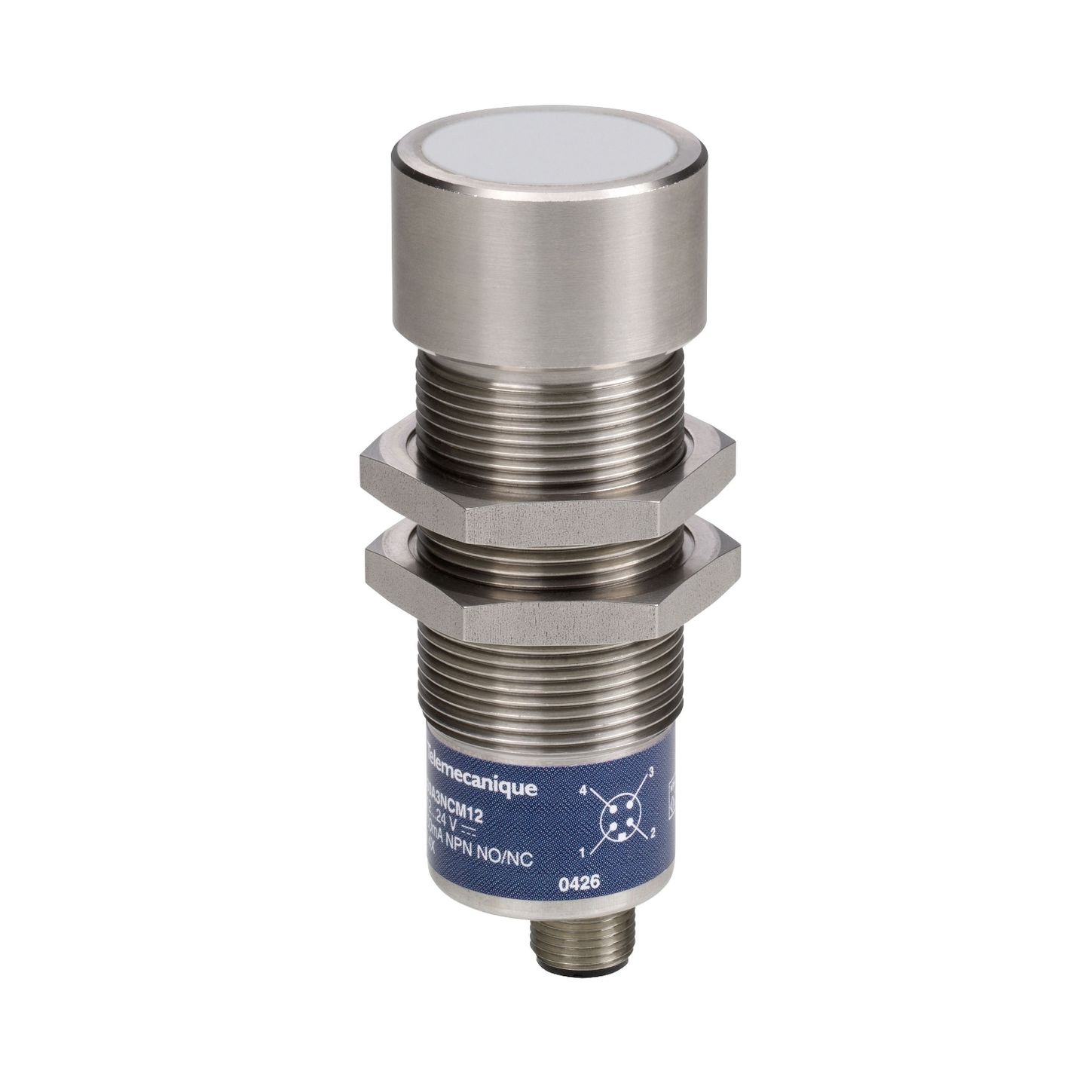

Square D XX930S1A2M12

Name: Square D XX930S1A2M12
Brand: Square D
SKU: CS3655672
Availability: OutOfStock

SKU: CS3655672MPN: XX930S1A2M12

Ultrasonic sensors XX, ultrasonic sensor, M30 stainless steel, diffuse, Sn 1 m, 4...20 mA, M12

Product Details

Ultrasonic sensor - M30 stainless steel, diffuse, Sn 1m, 4..20 mA, M12

Sd Sensing Range	0.051-0.991 m
Ambient Air Temperature For Operation	0-50 °C
Ambient Air Temperature For Operation 1	0-50 °C
Ambient Air Temperature For Storage	-40-80 °C
Analogue Output Function	4…20 mA
Beam Angle	10 °
Blind Zone	0-51 mm
Blind Zone 1	0-51 mm
Current Consumption	60 mA
Deviation Angle From 90 Of Object To Be Detected	-8-8 °
Enclosure Material	stainless steel 303
Front Material	silicone
Function Available	without synchronisation mode
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	720 ms
Maximum Delay Recovery	25 ms
Maximum Delay Response	25 ms
Product Certifications	UL# #cCSAus
Range Of Product	Telemecanique Ultrasonic sensors XX
Sensor Design	cylindrical M30
Sensor Name	XX9
Sensor Type	ultrasonic sensor
Series Name	general purpose
Setting Up	slope selection using teach button
Standards	IEC 60947-5-2
Thread Type	M30 x 1.5
Transmission Frequency	200 kHz
Type Of Output Signal	analogue
Wiring Technique	4-wire
