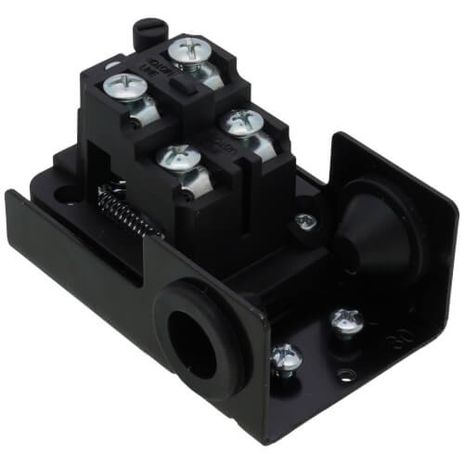

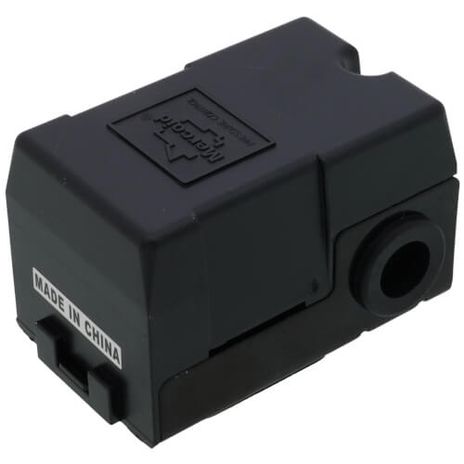

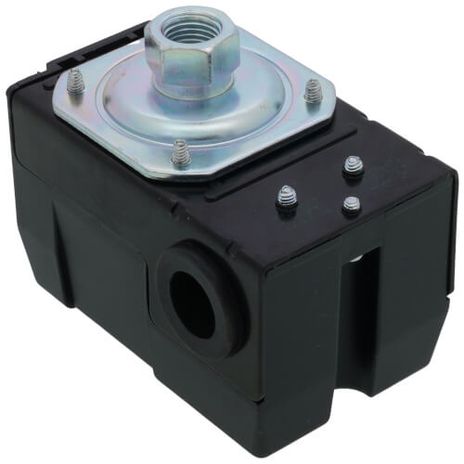

Dwyer CXA-R1
SKU: CS3647796MPN: CXA-R1Alternate Part #: 124495-10
CXA-R1 PR SW 15-80 PSI ¼ NPT
$21.62
UnitAvailable on backorder
Product Details
Water pump pressure switch, NO, range 15-80 psig (1.0-5.5 bar), approx. adj. deadband 15-30 psig (1.0-2.1 bar), max. pressure 129 psig (8.9 bar).
Attributes
| Commodity Code | R2AB |
| Compliance | CE. |
| Conduit Connection | ⅞” hole for ½” conduit hub (2 places). |
| Deadband | See model chart on Catalog Page. |
| Electrical Connection | Screw terminal. |
| Electrical Connections | Screw terminal. |
| Electrical Rating | 20 A @ 120 VAC, 12 A @ 240 VAC, 9.6 A @ 240 VAC (3 phase), 8.6 A @ 32 VDC, 3.1 A @ 120 VDC, 1.6 A @ 240 VDC. |
| Electrical Ratings | 20 A @ 120 VAC, 12 A @ 240 VAC, 9.6 A @ 240 VAC (3 phase), 8.6 A @ 32 VDC, 3.1 A @ 120 VDC, 1.6 A @ 240 VDC. |
| Enclosure Rating | General purpose. |
| Mounting Orientation | Switch can be installed in any position. |
| Pressure Limit | See model chart on catalog page. |
| Process Connection | ¼” female NPT. |
| Repeatability | ±5 psig (±0.3 bar). |
| Service | Compatible liquids and gases. |
| Set Point Adjustment | Internal screws. |
| Switch Type | DPST snap action (see model chart on catalog page). |
| Wetted Material | Silicone, steel, and SS. |
Specifications
| SKU | CS3647796 |
|---|---|
| MPN | CXA-R1 |
| Alternate Part # | 124495-10 |
