Dwyer AP-153-39

SKU: CS40375MPN: AP-153-39Alternate Part #: 125853-03

AP-153-39 PRESS SW

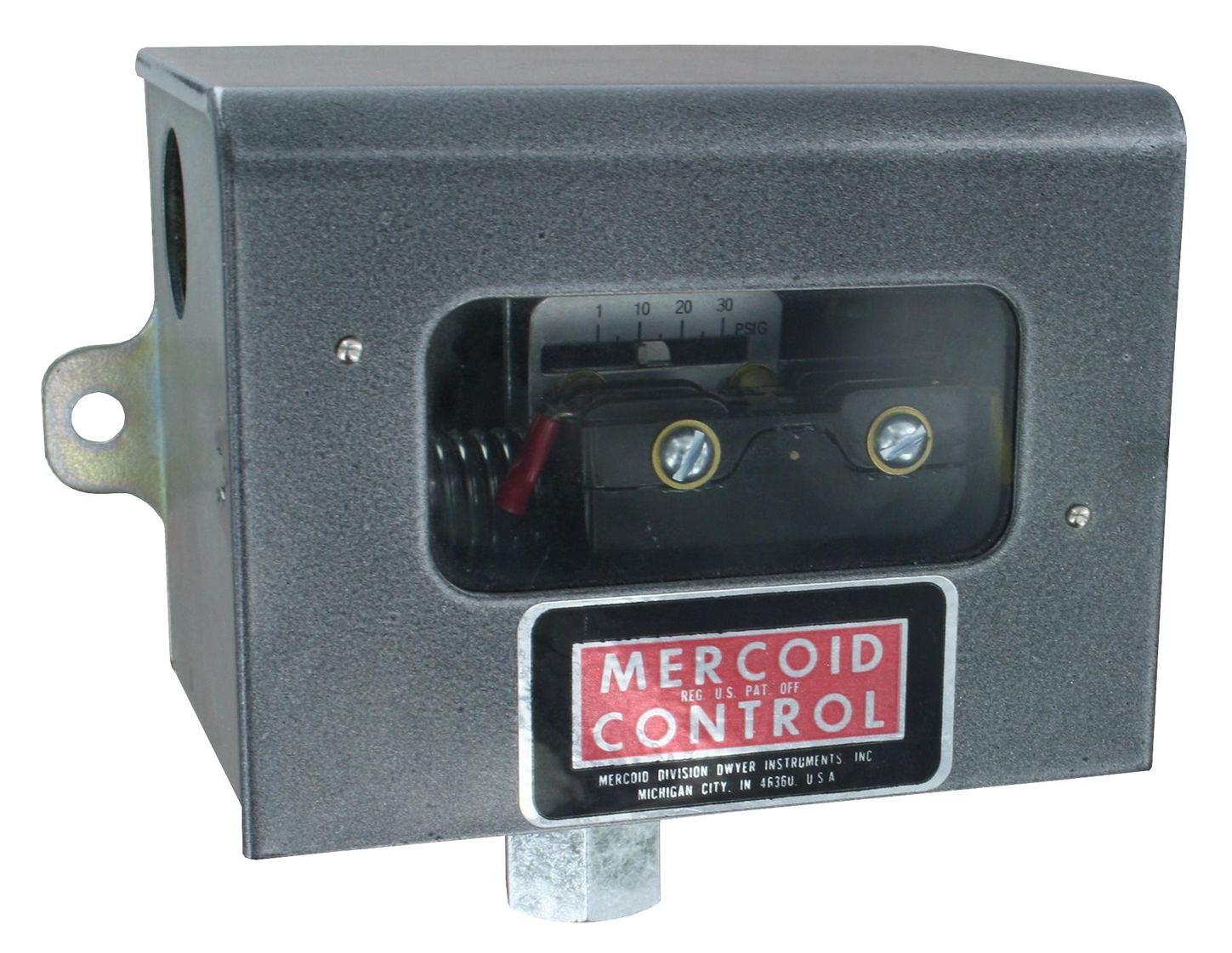

Dwyer AP-153-39
Contact us for pricing and availability

Product Details

Diaphragm operated pressure switch, range 10-125 psig (.69-8.6 bar), SPDT mercury switch, low deadband 2 psig (0.14 bar), high deadband 6 psig (0.41 bar), max. pressure 160 psig (11.0 bar).

Attributes

Commodity Code 8800
Compliance FM, UL. For FM consult factory.
Conduit Connection ⅞” (22.23 mm) hole for ½” (12.7 mm) conduit hub.
Deadband See Catalog page.
Electrical Connection Screw terminal.
Electrical Rating Mercury switch: 4 A @ 120 VAC/DC, 2 A @ 240 VAC/DC. Snap switch: 15 A @ 120 VAC, 8 A @ 240 VAC, 0.5 A @ 120 VDC, 0.25 A @ 240 VDC.
Enclosure Rating General purpose. Weatherproof and explosion-proof optional.
Mounting Orientation Vertical for mercury switch models, any position for snap switch models.
Pressure Limit See Catalog page.
Process Connection ¼” female NPT.
Set Point Adjustment External screw.
Switch Type SPDT mercury switch or SPDT snap switch. Other switch types available.
Wetted Material Nylon reinforced Buna-N and steel. PTFE and 316 SS optional.

Specifications

SKUCS40375
MPNAP-153-39
Alternate Part #125853-03
