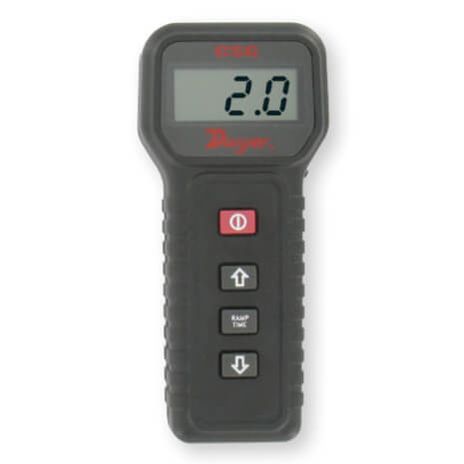

Dwyer CSG
SKU: CS3630704MPN: CSGAlternate Part #: 124572-00
CSG SIGNAL GENERATOR W/AC ADPT
$311.21
UnitAvailable on backorder
Product Details
Current/voltage calibrator.
Attributes
| Ambient Operating Temperature | 32 to 122°F (0 to 50°C). |
| Auto Power Off | 1 to 20 min. |
| Commodity Code | R7EB |
| Electrical Connection | 6 ft (1.8 m) with alligator clips. |
| Electrical Connections | 6 ft (1.8 m) with alligator clips. |
| Impedance | Voltage: 1000Ω min.; Current: 300Ω max. |
| Output | 0 to 20 mA (1 mA increments); 0 to 10 VDC (1 VDC increments). |
| Power Requirement | 9 V alkaline battery, included, user replaceable or 120 VAC (provided). |
| Ramping Time Intervals | 1 to 20 sec (1 sec increments). |
| Resolution | 1 mA (current); 1 VDC (voltage). |
Specifications
| SKU | CS3630704 |
|---|---|
| MPN | CSG |
| Alternate Part # | 124572-00 |
You may also like

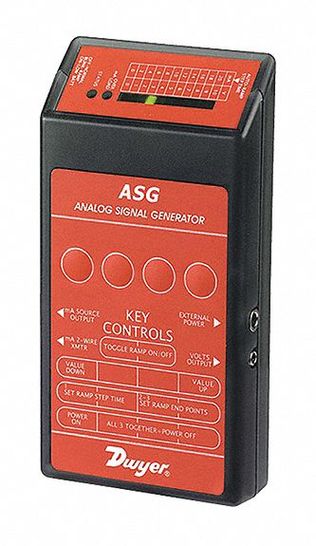

Dwyer ASG
$343.60UnitDwyer DPMX-1
$694.59Unit

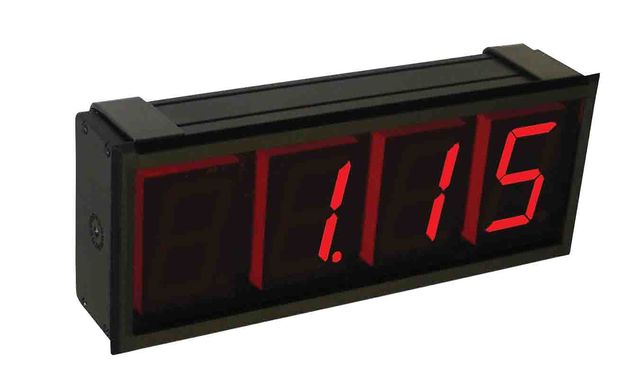

Dwyer DPMX-3
$694.59Unit

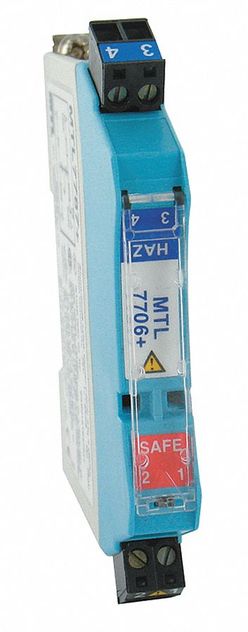

Dwyer MTL7706
