Eaton 15100A6517

Name: Eaton 15100A6517
Brand: Eaton
SKU: CS3568145
Price: 360.32 USD
Availability: OutOfStock

SKU: CS3568145MPN: 15100A6517UPC/EAN: 782113825557

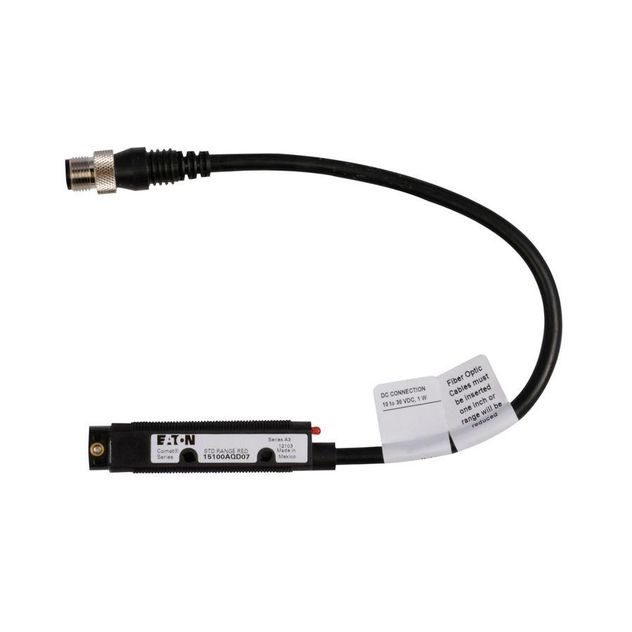

Eaton Comet 18mm tubular photoelectric sensor

Product Details

Eaton Comet 18mm tubular photoelectric sensor, Fiber Optic, Forward Viewing, Fiber optic, Output ON, 6.6 ft, 100 mA PNP, 250 mA NPN at 10-30 Vdc, PVC, NPN and PNP open collector, 10-30 Vdc

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	NPN and PNP open collector
Contact Rating	100 mA PNP, 250 mA NPN at 10-30 Vdc
Enclosure Material	Polyurethane foam (RIM)
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	100 mA PNP, 250 mA NPN
Operating Mode	Fiber-optic
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Latching short circuit
Sensor Type	Fiber optic
Type	Photoelectric Sensor
