Eaton 13100AF1817
SKU: CS2636957MPN: 13100AF1817UPC/EAN: 782114649213
Eaton Comet 18mm tubular photoelectric sensor
$436.29
UnitAvailable on backorder
Product Details
Eaton Comet 18mm tubular photoelectric sensor, Photoelectric Proximity Switch, Diffuse Reflective, Forward Viewing, Output ON, 18 ft, 100 mA PNP, 250 mA NPN at 10-30 Vdc, PVC, NPN and PNP open collector, 10-30 Vdc
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 100 mA PNP, 250 mA NPN at 10-30 Vdc |
| Enclosure Material | Polyurethane foam (RIM) |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Output ON |
| Maximum Dc Current | 100 mA PNP, 250 mA NPN |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Auto reset short circuit |
| Sensor Type | Diffuse reflective |
| Type | Photoelectric Proximity Switch |
Specifications
| SKU | CS2636957 |
|---|---|
| MPN | 13100AF1817 |
| UPC/EAN | 782114649213 |
You may also like
Eaton 13100AS5055
Contact us for pricing and availabilityEaton 13100AS8040
Contact us for pricing and availability
Eaton 13100A6517
Contact us for pricing and availabilityEaton 13106AS5150
Contact us for pricing and availability
Eaton 13106A6517
Contact us for pricing and availability
Eaton 13106R6517
Contact us for pricing and availabilityEaton 13106AF1017
Contact us for pricing and availability

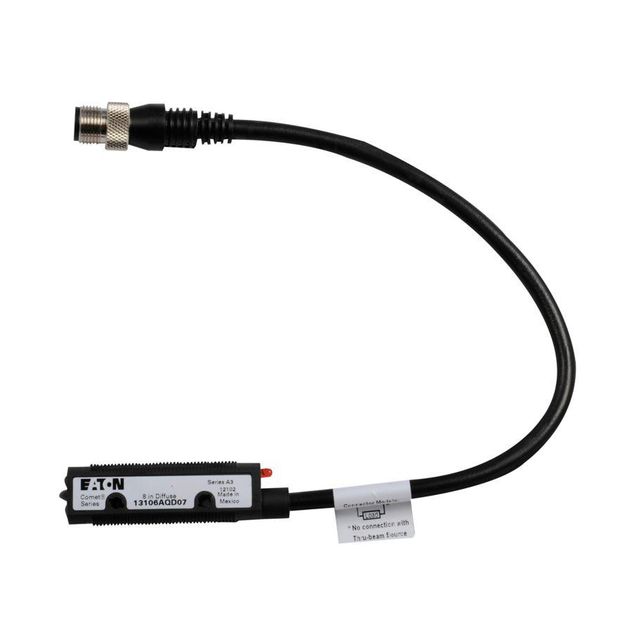

Eaton 13106AQD07
Contact us for pricing and availabilityEaton 13106AF2017
Contact us for pricing and availabilityEaton 13106AF1517
Contact us for pricing and availability

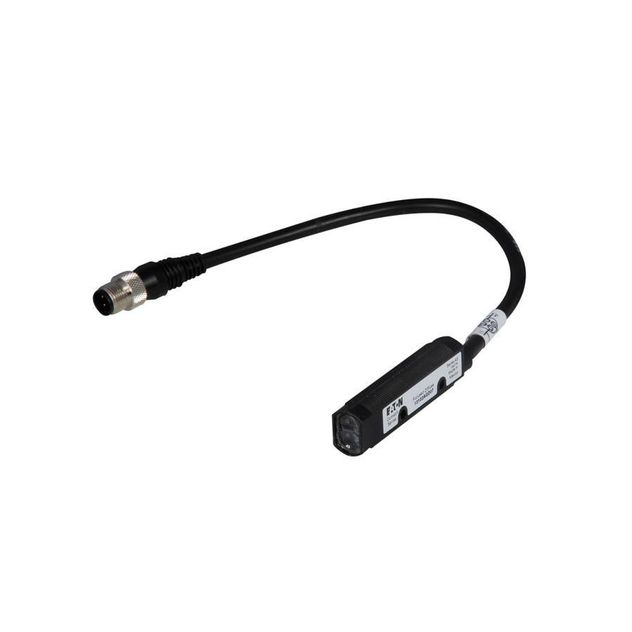

Eaton 13102AQD07
