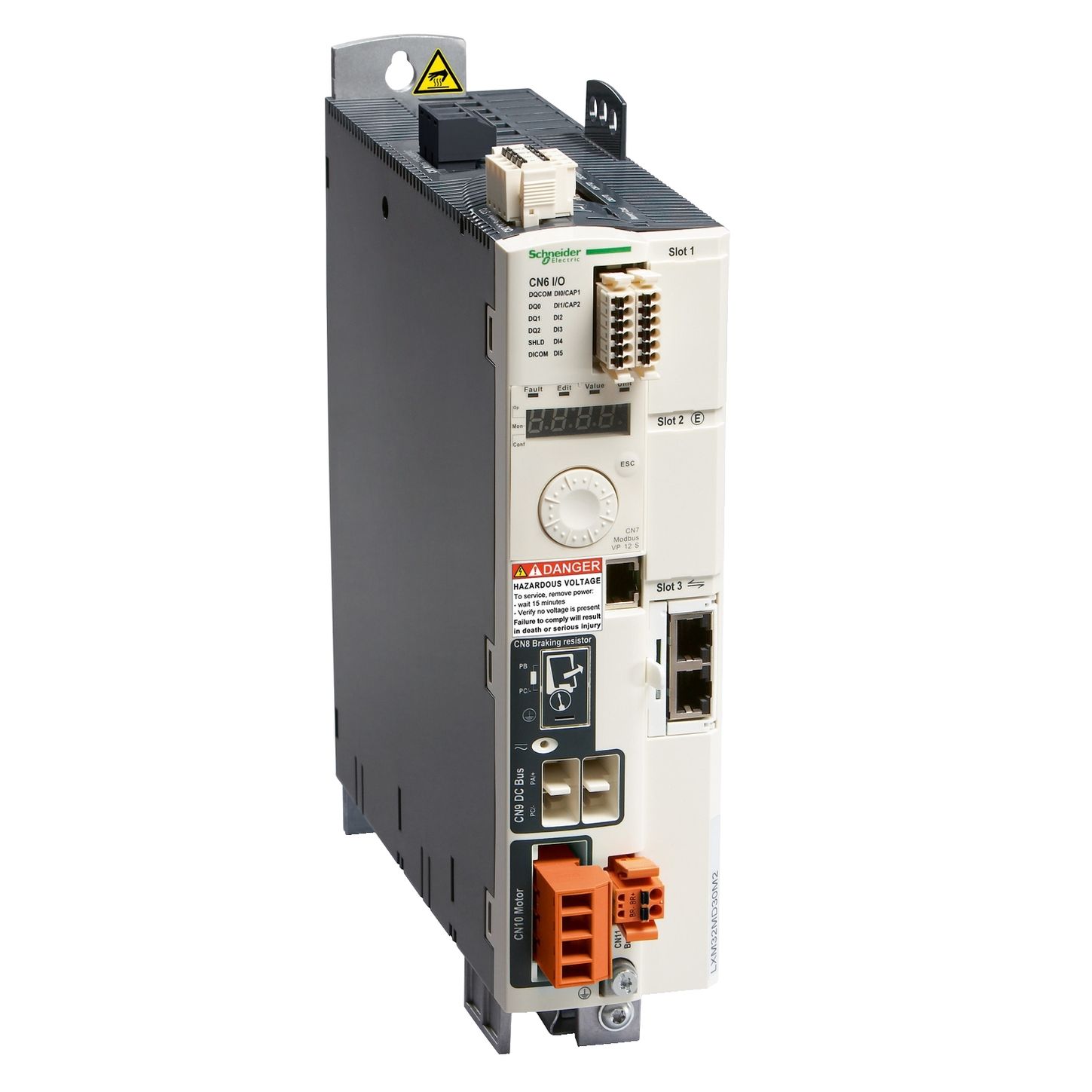

Square D LXM32MD12N4
SKU: CS3342692MPN: LXM32MD12N4
motion servo drive, Lexium 32, 12A, three phase, supply voltage 208 to 480V, 0.9kW
Contact us for pricing and availability
Product Details
Motion servo drive - Lexium 32, three-phase supply voltage 208/480V, 0.9 kW
Attributes
| Ambient Air Temperature For Storage | -25-70 °C |
| Braking Current | 50 mA |
| Device Short Name | LXM32M |
| Discrete Output Number | 3.0000 |
| Electrical Isolation | between power and control |
| Emc Filter | integrated |
| Format Of The Drive | book |
| Marking | CE |
| Maximum Leakage Current | 30 mA |
| Network Frequency | 47.5…63 Hz |
| Network Number Of Phases | three phase |
| Network Number Of Phases 1 | three phase |
| Operating Position | vertical ± 10 degree |
| Output Voltage | <= power supply voltage |
| Overvoltage Category | III |
| Product Certifications | TÜV# #CSA# #UL |
| Product Or Component Type | motion servo drive |
| Range Of Product | Lexium 32 |
| Standards | EN/IEC 61800-5-1# #EN/IEC 61800-3 |
| Supply Voltage Limits | 323-528 V# #170-264 V |
| Switching Frequency | 8 kHz |
| Type Of Cooling | integrated fan |
Specifications
| SKU | CS3342692 |
|---|---|
| MPN | LXM32MD12N4 |
