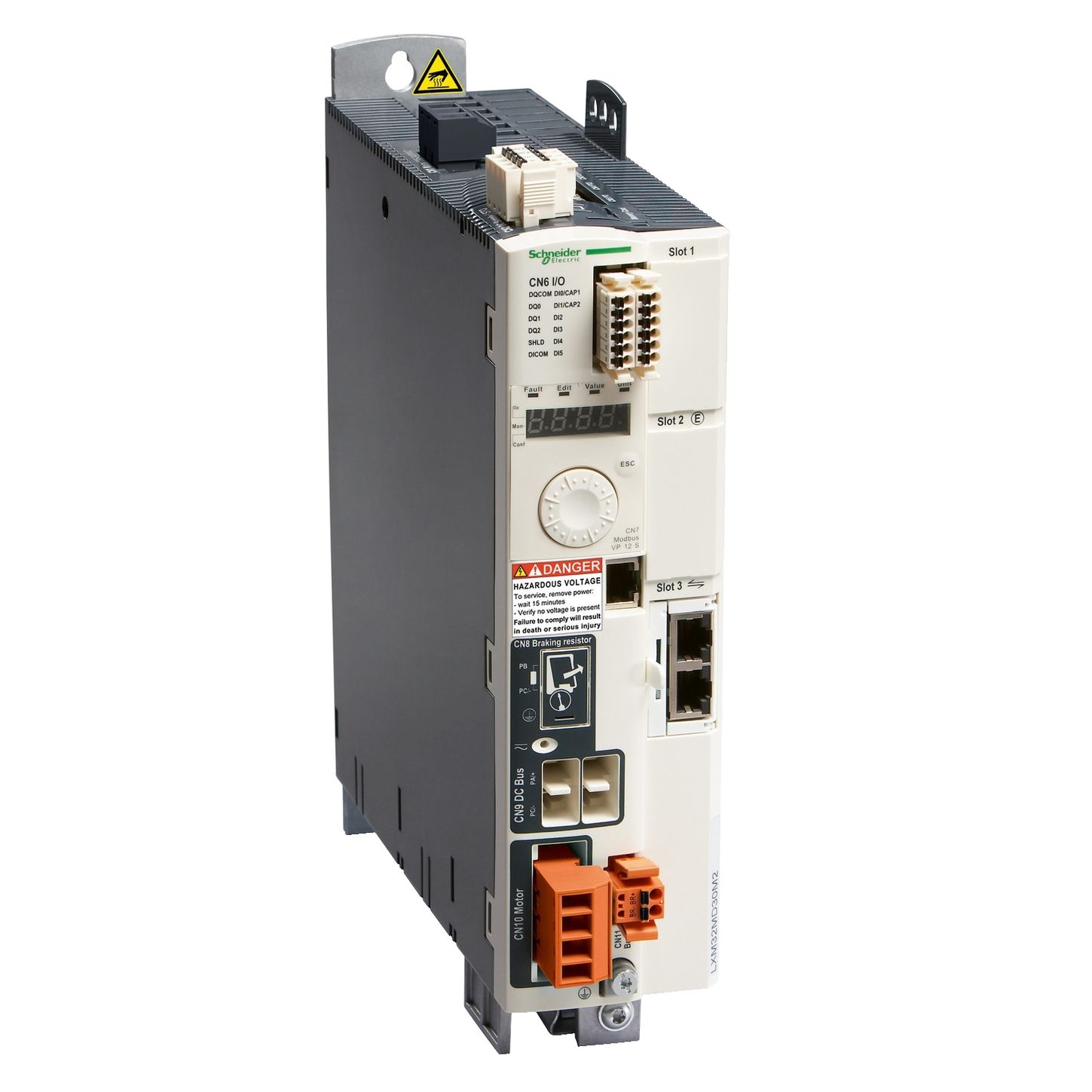

Square D LXM32MD30N4

motion servo drive, Lexium 32, 30A, three phase, supply voltage 208 to 480V, 3kW

Motion servo drive - Lexium 32, Three-phase supply voltage 208/480V, 3 kW

• Range of product : Lexium 32
• Product or component type : Motion servo drive
• Device short name : LXM32M
• Format of the drive : Book
• Network number of phases : 3ph
• [Us] rated supply voltage : 200...240 V - 15...10 %, 380...480 V - 15...10 %
• Supply voltage limits : 323…528 V, 170…264 V
• Supply frequency : 50/60 Hz - 5...5 %
• Network frequency : 47.5...63 Hz
• EMC filter : Integrated
• Continuous output current : 10 A at 8 kHz
• Output current 3s peak : 30 A for 5 s
• Maximum continuous power : 2600 W at 230 V, 13000 W at 400 V
• Nominal power : 2 kW at 230 V 8 kHz, 3 kW at 400 V 8 kHz
• Switching frequency : 8 kHz
• Overvoltage category : III
• Maximum leakage current : 30 mA
