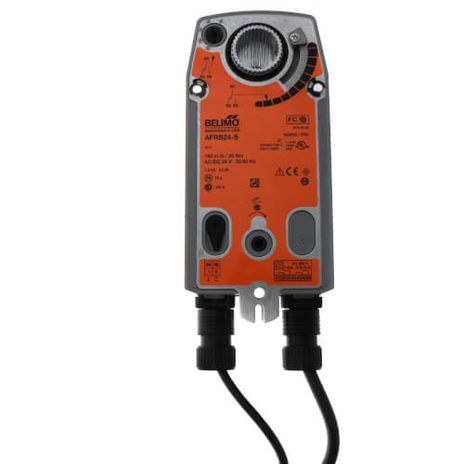

Belimo AFRB24-S

Name: Belimo AFRB24-S
Brand: Belimo
SKU: CS3287075
Price: 499.20 USD
Availability: OutOfStock

SKU: CS3287075MPN: AFRB24-S

Valve Actuator, Spring return, AC/DC 24 V, On/Off, 2 x SPDT

$499.20

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo AFRB24-S Data Sheet

Product Details

AFR series actuators are used with B6 Series, Two Way Flanged Ball Valves.

Application: This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.

Attributes

Control	On/Off
Auxillary Switch	2 x SPDT
Fail-Safe	Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	7.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	5 W
Power Consumption In Rest Position	2.5 W
Electrical Connection	(2) 18 GA appliance cables with ½” conduit connectors, 3 ft [1 m],
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	90°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Auxiliary Switch	2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, one set at 10°, one adjustable 10…90°
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
