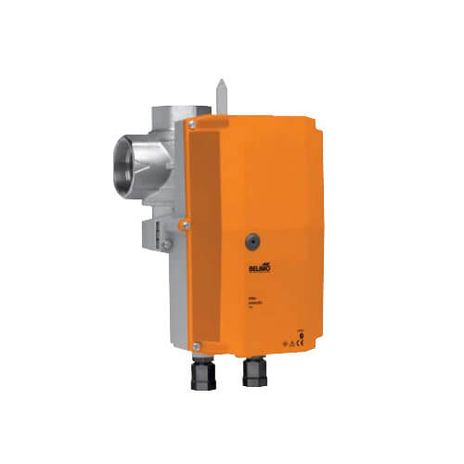

Belimo ARX24-SR-T

Name: Belimo ARX24-SR-T
Brand: Belimo
SKU: CS3177345
Price: 412.53 USD
Availability: OutOfStock

SKU: CS3177345MPN: ARX24-SR-T

Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, terminals, modulating

$412.53

Unit

Available on backorder

Quantity

remove

add

Documents

Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, terminals, modulating

Control	modulating
Fail-Safe	Non-Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	5 VA (class 2 power source)
Enclosure	UL Enclosure Type 1
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	0.4 W
Electrical Connection	Terminal blocks
Overload Protection	electronic thoughout 0…90° rotation
Operating Range	2…10 V, 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor)
Input Impedance	100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA
Position Feedback	2…10 V, Max. 1 mA
Angle Of Rotation	90°
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, pluggable
Running Time (Motor)	default 90 s, variable 90 or 150 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 1
Connection	terminals
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Fail-Safe Function	Non fail-safe
Control Type Web	DC 2…10 V
Fail-Safe	NO
