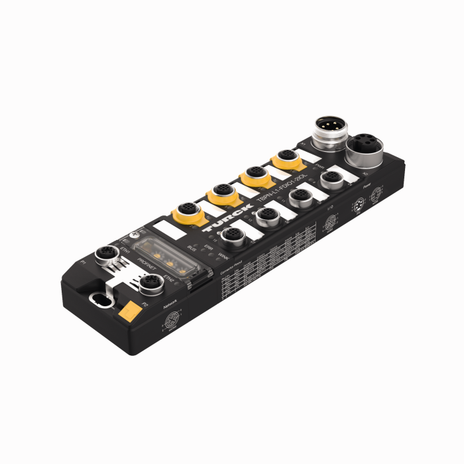

Turck TBPN-L1-FDIO1-2IOL

SKU: CS3170770MPN: TBPN-L1-FDIO1-2IOLAlternate Part #: 6814053UPC/EAN: 4047101354010

6814053 - PROFISAFE

Turck TBPN-L1-FDIO1-2IOL
Turck TBPN-L1-FDIO1-2IOL
Turck TBPN-L1-FDIO1-2IOL
Turck TBPN-L1-FDIO1-2IOL
$1,757.44
Unit
Available on backorder
remove
add

Product Details

Compact PROFIsafe / PROFINET Block I/O Module

Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports

  • PROFINET slave
  • Integrated Ethernet switch
  • 100 Mbps supported
  • 2 × M12, 4-pin, D-coded Ethernet fieldbus connection
  • Glass fiber reinforced housing
  • Shock and vibration tested
  • Fully potted module electronics
  • Protection classes IP65, IP67, IP69K
  • 5-pin ⅞″ male connector for power supply
  • ATEX Zone 2/22
  • Two secure digital SIL3-inputs
  • Two secure digital SIL3 channels as FDI or FDO (PP, PM)
  • Four secure digital SIL3 FDI channels
  • 2 IO-Link Master V1.1 slots

Attributes

Ambient Temperature -40…+70 °C
Approvals ATEX Zone 2/22, cULus
Connection Technology Signal M12
Customs Tariff Number 85176200000.0000
Device Type I/O Module, Compact station
Ecl Ss Code V5 1 4 27250302 -/- Digital I/O module (periphery)
Fieldbus Connection Technology 2 x M12, 4-pin, D-coded
Fieldbus Protocol PROFIsafe via PROFINET
Fieldbus Transmission Rate 100 Mbps
Protection Class IP65/IP67/IP69K
Signal Type Fail-safe inputs, Fail-safe inputs and outputs, Digital input/output, IO-Link

Specifications

SKUCS3170770
MPNTBPN-L1-FDIO1-2IOL
Alternate Part #6814053
UPC/EAN4047101354010
