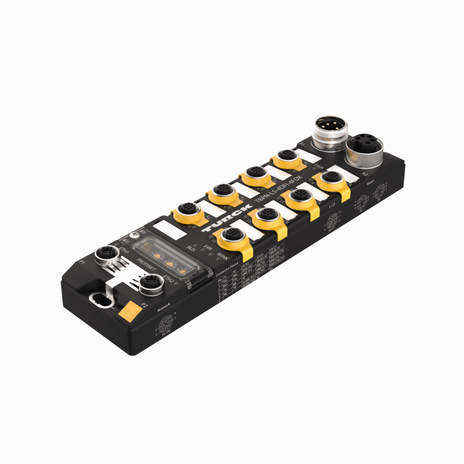

Turck TBPN-L5-4FDI-4FDX
SKU: CS4209024MPN: TBPN-L5-4FDI-4FDXAlternate Part #: 100001826UPC/EAN: 4047101453621
100001826 - PROFISAFE
$1,721.11
UnitAvailable on backorder
Product Details
Compact PROFIsafe / PROFINET Block I/O Module
Safe Digital Inputs and Outputs
- PROFINET slave
- Integrated Ethernet switch
- 100 Mbps supported
- 2 × M12, 4-pin, D-coded Ethernet fieldbus connection
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 5-pin ⅞″ male connector for power supply
- ATEX Zone 2/22
- Four secure digital SIL3 inputs
- Four secure configurable digital SIL3 inputs or outputs
Attributes
| Ambient Temperature | -40…+70 °C |
| Approvals | ATEX Zone 2/22, cULus |
| Connection Technology Signal | M12 |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | I/O Module, Compact station |
| Ecl Ss Code V5 1 4 | 27250302 -/- Digital I/O module (periphery) |
| Fieldbus Connection Technology | 2 x M12, 4-pin, D-coded |
| Fieldbus Protocol | PROFIsafe via PROFINET |
| Fieldbus Transmission Rate | 100 Mbps |
| Protection Class | IP65/IP67/IP69K |
| Signal Type | Fail-safe inputs, Fail-safe inputs and outputs |
Specifications
| SKU | CS4209024 |
|---|---|
| MPN | TBPN-L5-4FDI-4FDX |
| Alternate Part # | 100001826 |
| UPC/EAN | 4047101453621 |
You may also like
Turck TBIP-L5-4FDI-4FDX
$1,724.78Unit

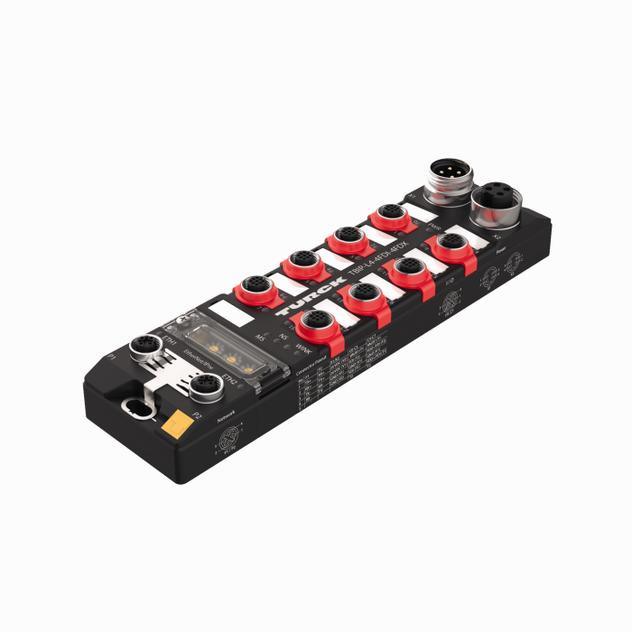

Turck TBIP-L4-4FDI-4FDX
$1,836.22Unit

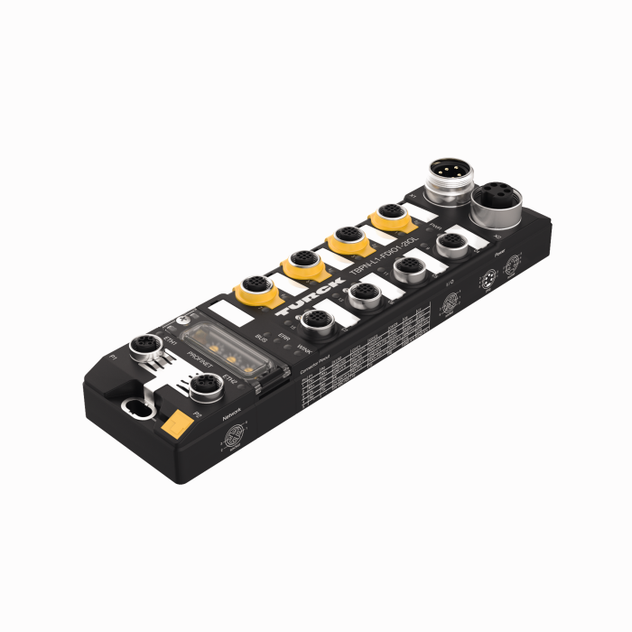

Turck TBPN-L1-FDIO1-2IOL
$1,757.44Unit

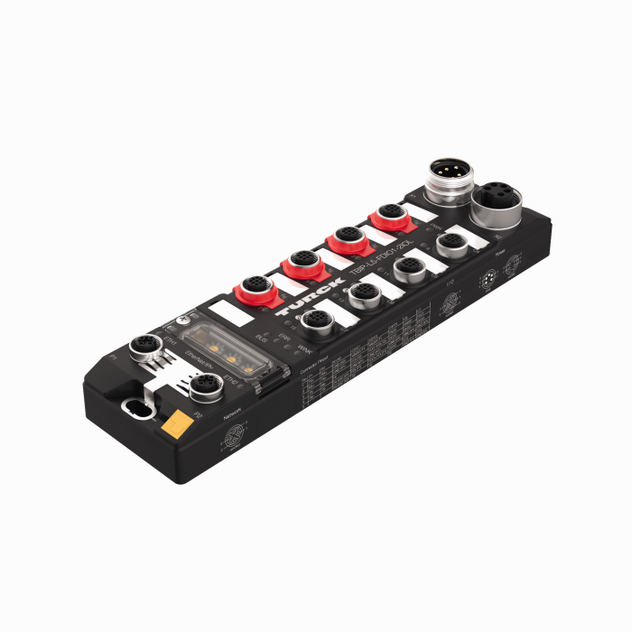

Turck TBIP-L5-FDIO1-2IOL
$1,757.00Unit
Turck TBEN-L5-16DOP
$862.56UnitTurck TBEN-L5-16DXP
$877.67UnitTurck TBEN-L5-8IOL
$904.67UnitTurck TBEN-L5-16DIP
$723.89UnitTurck TBEN-L5-EN1
$1,148.44UnitTurck TBEN-L5-8DIP-8DOP
$808.22UnitTurck TBPN-LL-4FDI-4FDX
$1,715.11Unit

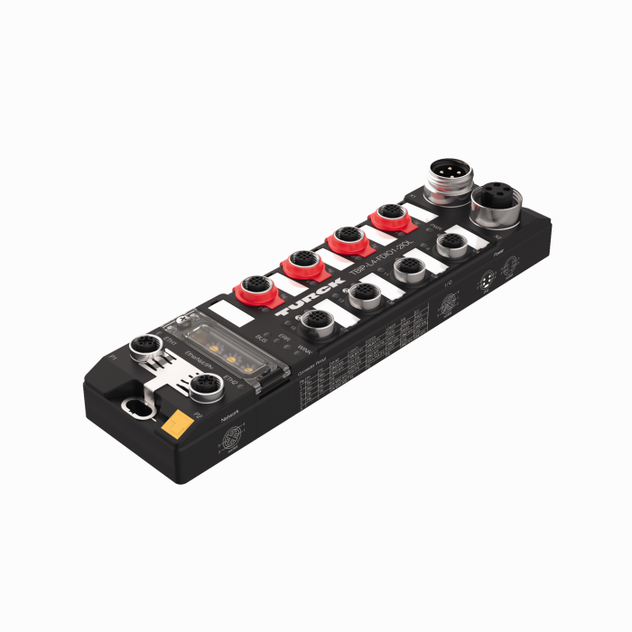

Turck TBIP-L4-FDIO1-2IOL
