Eaton E57SAL18A2E

Name: Eaton E57SAL18A2E
Brand: Eaton
SKU: CS3154983
Price: 239.24 USD
Availability: OutOfStock

SKU: CS3154983MPN: E57SAL18A2EUPC/EAN: 782113381930

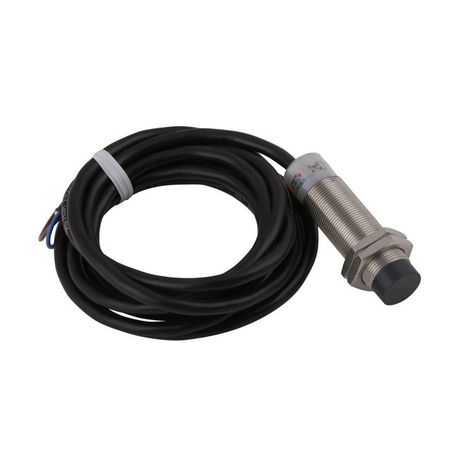

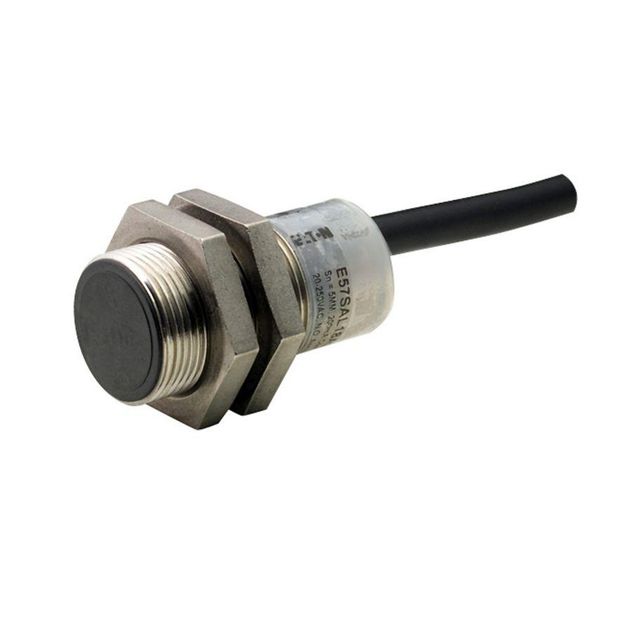

Eaton E57 inductive proximity sensor

Eaton E57SAL12A2E, E57SAL12A2EA, E57SAL12A2S5, E57SAL12A2SA, E57SAL12T110, E57SAL12T111SD, E57SAL18A2E, E57SAL18A2EA, E57SAL18A2S4, E57SAL18A2S5, E57SAL18A2SA, E57SAL18T111, E57SAL18T111E5

Product Details

Inductive Proximity Sensor, E57, Straight, Unshielded, 360° viewable LED, 6.6 ft, 250 mA at 40-240 Vac/20-250 Vdc, \<3%, PVC, 2-wire AC/DC, NO, 40-250 Vac 50/60 Hz, 20-250 Vdc

Attributes

Accuracy	< 3%
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	2-wire AC/DC, NO
Contact Rating	250 mA at 40-240 Vac/20-250 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	40-250 Vac at 50/60 Hz, 20-250 Vdc
Led Indicator	360 ° viewable LED
Maximum Ac Current	250 mA
Maximum Dc Current	250 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Resettable short circuit, overload
Series	E57
Temperature Rating	-13 to 158 °F
Type	E57
