Eaton E57LAL30A2E

Name: Eaton E57LAL30A2E
Brand: Eaton
SKU: CS3077789
Price: 264.29 USD
Availability: OutOfStock

SKU: CS3077789MPN: E57LAL30A2EUPC/EAN: 782113743073

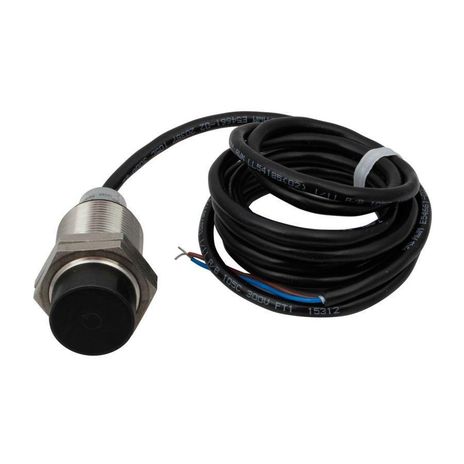

Eaton E57 inductive proximity sensor

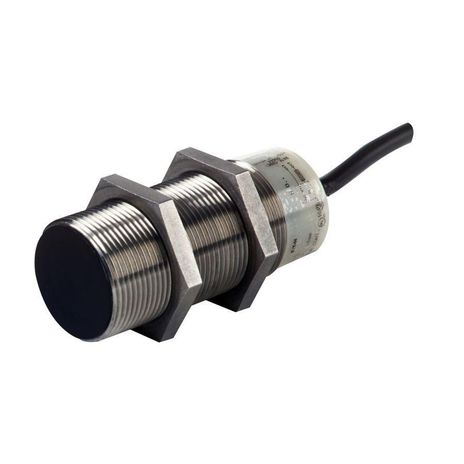

Eaton E57LAL30A2E, E57LAL30A2EA, E57LBL30A2E, E57LBL30A2EA

Product Details

Premium+ Inductive Proximity Sensor, E57, Straight, 30 mm, Unshielded, 360° viewable LED, 6.6 ft, 250 mA at 250V, \<3% sensing range, PVC, 2-wire AC, NO, 20-250V

Attributes

Accuracy	< 3% sensing range
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	2-wire AC, NO
Contact Rating	250 mA at 250V
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	20-250 V
Led Indicator	360 ° viewable LED
Maximum Ac Current	250 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Series	E57
Size	30 mm
Temperature Rating	-13 to 158 °F
Type	E57
