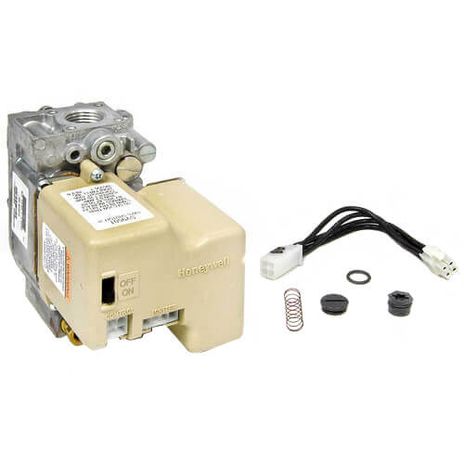

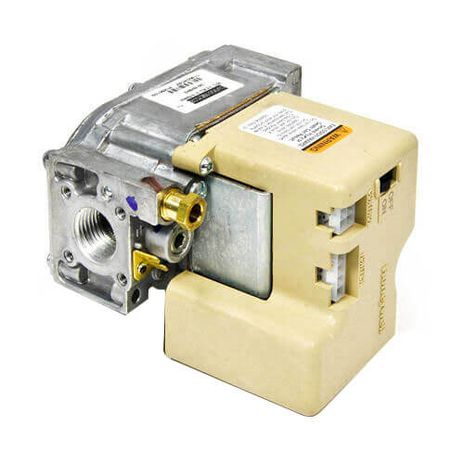

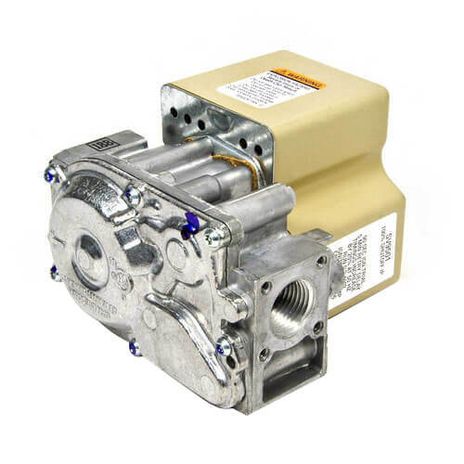

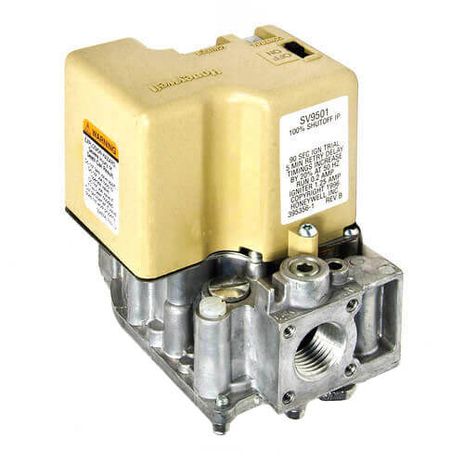

Resideo SV9602P4840

INTERMITTENT PILOT, STEP OPENING, ¾” X ¾”, 10.0” W.C. FULL RATE SETTING, 1.4” STEP SETTING, CONTINUOUS RETRY. 30 SEC PREPURGE.

Product Overview:

• The SV9602 SmartValve System Controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. This system is suitable for application in a wide range of gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, space heaters, water heaters, decorative appliances, and commercial cooking units. The specific application of the SmartValve System is the responsibility of the appliance manufacturer.

Product Specifications:

• Description: ¾ in. NPT x ¾ in. NPT Intermittent Hot Surface Pilot Ignition SmartValve Control with step opening and Full Rate: 10.0 in. wc; Step Setting: 1.4 in. wc pressure regulator setting
• Flame Sense: Two Rod
• Type of Gas: LP
• Ignition System Type: Intermittent Hot Surface Pilot Ignition
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Ignition Trials To Lockout: continuous retry
• PrePurge: 30 seconds
• Body Pattern: Straight-through
• Opening Characteristics: Step Opening
• Control Voltage (Thermostat or other call for heat): 24 Vac, 60 Hz.
• Ignition Trial Time (sec): 90 sec
• Electrical Ratings: 24 Vac
• Frequency: 50 Hz; 60 Hz
• Flame Failure Response Time (sec): 1.6 sec @ 3 µA
• Ambient Temperature Range (F): -40 F to +175 F
• Ambient Temperature Range (C): -40 C to +79 C
• Dimensions (in.): 3.2 in. wide x 4.9 in. high x 4.1 in.long
• Dimensions (mm): 81 mm wide x124 mm high x 104 mm long
• Pressure Regulator Setting (psi): Full Rate: 10.0 in. wc; Step Setting: 1.4 in. wc
• Pressure Regulator Setting (kPa): Full Rate: 2.49 kPa; Step Setting: 0.35 kPa
• Inlet/Outlet Size (in.): ¾ in. NPT x ¾ in. NPT.
• Maximum Capacity (ft³/hr): 415 ft³/hr
• Maximum Capacity (m³/hr): 11.8 m³/hr
• Minimum Capacity (ft³/hr): 30 ft³/hr
• Minimum Capacity (m³/hr): 0.8 m³/hr
• Maximum Capacity at 1 in. P.D. (ft³/hr): 300 ft³/hr
• Maximum Capacity at 1 in. P.D. (m³/hr): 8.5 m³/hr
• Pressure Tapping: ⅛ in. - NPT
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Approvals, Canadian Standards Association: CSA-International, Design Certified
