Dwyer ULSL-10

Name: Dwyer ULSL-10
Brand: Dwyer
SKU: CS3107994
Price: 1610.49 USD
Availability: OutOfStock

SKU: CS3107994MPN: ULSL-10Alternate Part #: 124975-00

ULSL-10 18’RANGE, 2”NPT LVL SN

$1,610.49

Unit

Available on backorder

Quantity

remove

add

Product Details

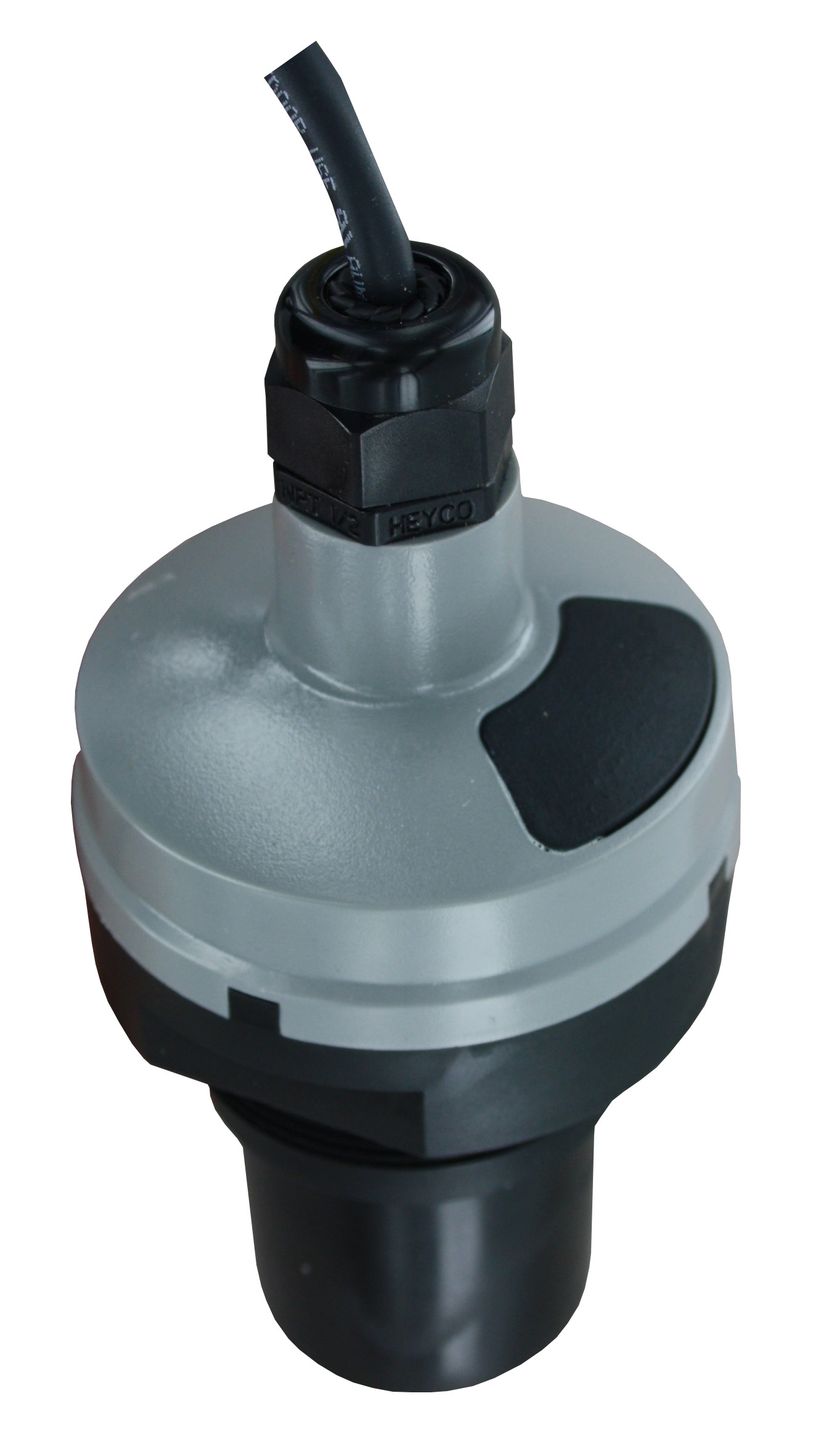

Ultrasonic level sensor, 18’ (5.5 m) measuring range, non-contact transmitter, 4 SPST programmable relays, 2” NPT thread. (USB adapter necessary for calibration. One adapter can program multiple units.)

Attributes

Accuracy	±0.2% of range.
Blind Zone	8” (20 cm).
Commodity Code	R2RF
Compliance	CE, RoHS.
Contact Rating	1 A max @ 28 VDC max.
Contact Type	4 SPST relays.
Deadband	Selectable (no hysteresis, ¼”, ½”, 1”, ½ cm, 1 cm, 2 cm, 5 cm or not available).
Electrical Connection	4’ (1.2 m) 9 conductor shielded cable.
Electrical Connections	4’ (1.2 m) 9 conductor shielded cable.
Enclosure Material	Polycarbonate; Gland: TPE.
Enclosure Rating	NEMA 6P (IP68).
Failsafe	Contact: Power loss: Hold last contact; Power on: Open, close, or last contact.
Loop Resistance	400 Î© max.
Memory	Non-volatile.
Mounting Orientation	Vertical.
Output Signal	4 to 20 mA, 2-wire. Invert: 4 to 20 mA or 20 to 4 mA; Fail-safe: 4 mA, 20 mA, 21 mA, 22 mA, or hold last.
Power Requirement	12 to 28 VDC.
Pressure Limit	30 psi (2 bar).
Process Connection	Process Connection: 2” NPT, 2” BSPP (optional).
Programming	Free PC software download (USB adapter required).
Range	18’ (5.5 m).
Ranges	18’ (5.5 m).
Resolution	0.079” (2 mm).
Service	Compatible fluids.
Temperature Compensation	Automatic.
Wetted Material	Sensor: PVDF; O-ring: FKM.
