Dwyer 641RM-12-LED

SKU: CS3078447MPN: 641RM-12-LEDAlternate Part #: 100519-17

641RM-12-LED W/ 6 FT CABLE

Dwyer 641RM-12-LED
$956.17
Unit
Available on backorder
remove
add

Product Details

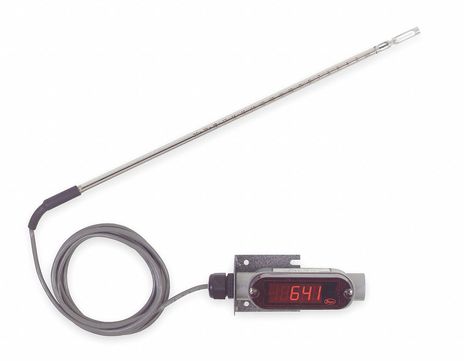

Air velocity transmitter, with LED display.

Attributes

Accuracy 3% FS Process gas: 32 to 122°F (0 to 50°C); 4% FS Process gas: -40 to 32°F & 122 to 212°F (-40 to 0°C & 50 to 100°C).
Commodity Code 1102
Current Consumption 300 mA max.
Display 4-½ digit ½” red LED.
Electrical Connection Screw terminal.
Humidity Limit Non-Condensing.
Loop Resistance 600 Ω max.
Mounting Orientation Unit not position sensitive. Probe must be aligned with airflow.
Output Filter Selectable 0.5-15 s.
Output Signal 4 to 20 mA, isolated 24 V source, 3 or 4-wire connection.
Power Requirement 12 to 35 VDC, 10 to 16 VAC. 1.5 A rating required on supply due to initial power surge drawn by transmitter.
Pressure Limit 100 psi (6.89 bar) maximum.
Probe Diameter 5/16” (0.79 cm).
Range 250 FPM (1.25 MPS) to 15,000 FPM (75 MPS).
Resolution 1 FPM, 0.01 MPS (10 FPM @ 10,000 and 15,000 FPM ranges).
Response Time Flow: 1.5 s to 95% of final value (output filter set to min.).
Service Clean air and compatible, non-combustible gases.

Specifications

SKUCS3078447
MPN641RM-12-LED
Alternate Part #100519-17
