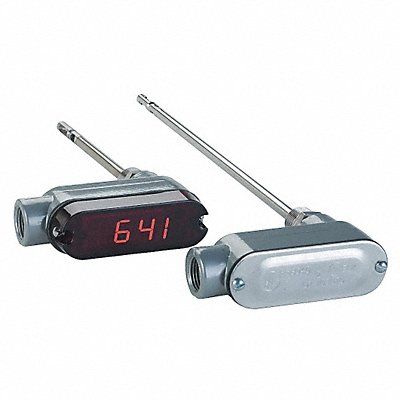

Dwyer 641-18

Name: Dwyer 641-18
Brand: Dwyer
SKU: CS5730382
Price: 749.58 USD
Availability: OutOfStock

SKU: CS5730382MPN: 641-18Alternate Part #: 100515-32

641AVT CE 18 IN W/O DISPLAY

$749.58

Unit

Available on backorder

Quantity

remove

add

Product Details

Air Velocity Transmitter Velocity Ranges FPM 250 500 1000 2000 3000 5000 10000 15000 Velocity Accuracy 3 Percent FS Process gas 32 to 122 Degrees F (0 to 50 Degrees C) 4 Percent FS Process gas -40 to 32 Degrees F 122 to 212 Degrees F (-40 to 0 Degrees C 50 to 100 Degrees C) Output 4-20ma Power Required 12-35 VDC 10-16 VAC 1.5 A Rating Required on Supply Due to Initial Power Surge Drawn by Transmitter

Attributes

Accuracy	3% FS Process gas: 32 to 122°F (0 to 50°C); 4% FS Process gas: -40 to 32°F & 122 to 212°F (-40 to 0°C & 50 to 100°C).
Agency Approval	CE.
Commodity Code	1102
Current Consumption	300 mA max.
Display	4-½ digit ½” red LED.
Electrical Connection	Screw terminal.
Enclosure Rating	Designed to meet NEMA 4X (IP66) for non LED models only.
Humidity Limit	Non-condensing.
Loop Resistance	600 Î© max.
Mounting Orientation	Unit not position sensitive. Probe must be aligned with airflow.
Output Filter	Selectable 0.5-15 s.
Output Signal	4 to 20 mA, isolated 24 V source, 3 or 4-wire connection.
Power Requirement	12 to 35 VDC, 10 to 16 VAC. 1.5 A rating required on supply due to initial power surge drawn by transmitter.
Pressure Limit	100 psi (6.89 bar) maximum.
Process Connection	½” male NPT.
Resolution	1 FPM, 0.01 MPS (10 FPM @ 10,000 and 15,000 FPM ranges).
Response Time	Flow: 1.5 s to 95% of final value (output filter set to min.).
Service	Clean air and compatible, non-combustible gases.
