Dwyer 641-12-LED

SKU: CS136171MPN: 641-12-LEDAlternate Part #: 100515-11

641AVT CE 12 IN W/DISPLAY

Dwyer 641-12-LED
$945.55
Unit
Available on backorder
remove
add

Product Details

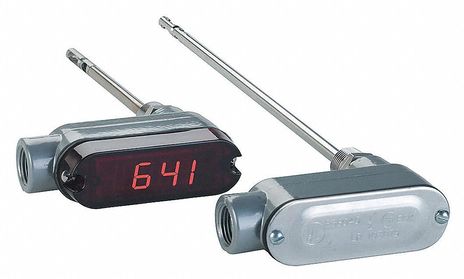

Air velocity transmitter, 12” (304.8 mm) probe length, with LED display.

Attributes

Accuracy 3% FS Process gas: 32 to 122°F (0 to 50°C); 4% FS Process gas: -40 to 32°F & 122 to 212°F (-40 to 0°C & 50 to 100°C).
Agency Approval CE.
Commodity Code 1102
Current Consumption 300 mA max.
Display 4-½ digit ½” red LED.
Electrical Connection Screw terminal.
Enclosure Rating Designed to meet NEMA 4X (IP66) for non LED models only.
Humidity Limit Non-condensing.
Loop Resistance 600 Ω max.
Mounting Orientation Unit not position sensitive. Probe must be aligned with airflow.
Output Filter Selectable 0.5-15 s.
Output Signal 4 to 20 mA, isolated 24 V source, 3 or 4-wire connection.
Power Requirement 12 to 35 VDC, 10 to 16 VAC. 1.5 A rating required on supply due to initial power surge drawn by transmitter.
Pressure Limit 100 psi (6.89 bar) maximum.
Process Connection ½” male NPT.
Resolution 1 FPM, 0.01 MPS (10 FPM @ 10,000 and 15,000 FPM ranges).
Response Time Flow: 1.5 s to 95% of final value (output filter set to min.).
Service Clean air and compatible, non-combustible gases.

Specifications

SKUCS136171
MPN641-12-LED
Alternate Part #100515-11
