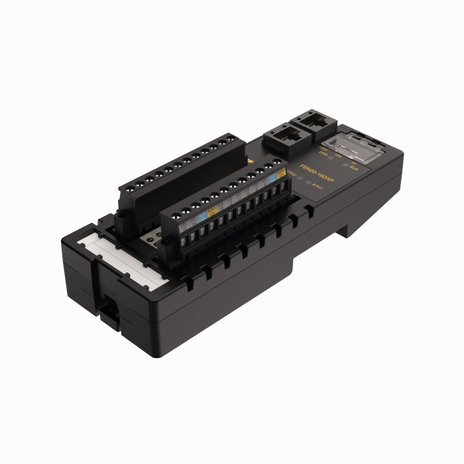

Turck FEN20-16DXP
SKU: CS3064972MPN: FEN20-16DXPAlternate Part #: 6931089UPC/EAN: 4047101308655
6931089 - MULTIPROTOCOL ETHERNET
$589.56
UnitAvailable on backorder
Product Details
Compact IP20 Multiprotocol Ethernet I/O Station
16 Configurable Digital PNP Channels
- FLC/ARGEE programmable
- EtherNet/IP™ Slave
- Modbus TCP Slave
- PROFINET Slave
- Integrated Ethernet Switch
- 10 Mbps / 100 Mbps supported
- 2 x RJ45 Sockets for Fieldbus Connection
- DIN rail mount housing
- 3 I/O power supply groups each galvanically separated
- 16 configurable PNP channels, DI or DO
- 24 VDC
- Up to 1 A outputs
- Protection class IP20
Attributes
| Ambient Temperature | -40…+70 °C |
| Approvals | cULus |
| Connection Technology Ethernet | 2 × RJ45 |
| Connection Technology Signal | Screw terminal |
| Customs Tariff Number | 85176200000.0000 |
| Device Type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Ecl Ss Code V5 1 4 | 27250302 -/- Digital I/O module (periphery) |
| Fieldbus Protocol | Modbus TCP, PROFINET, EtherNet/IP |
| Protection Class | IP20 |
| Signal Type | Digital input/output, Digital output, Digital input |
| Transmission Rate Ethernet | 10/100 Mbps, Full/Half Duplex, Auto Negotiation, Auto Cross |
Specifications
| SKU | CS3064972 |
|---|---|
| MPN | FEN20-16DXP |
| Alternate Part # | 6931089 |
| UPC/EAN | 4047101308655 |
You may also like
Turck FEN20-4IOL
$434.67Unit
Turck FEN20-4DIP-4DXP-DIN
$434.78Unit
Turck FEN20-4DIN-4DXN
$405.56UnitTurck FEN20-4DIN-4DXN-DIN
$434.78Unit
Turck TBEN-L5-16DXP
$877.67Unit
Turck TBEN-L4-16DXP
$877.67UnitTurck FEN20-EN1
$663.33UnitTurck FEN20-EN1-DIN
$692.67Unit

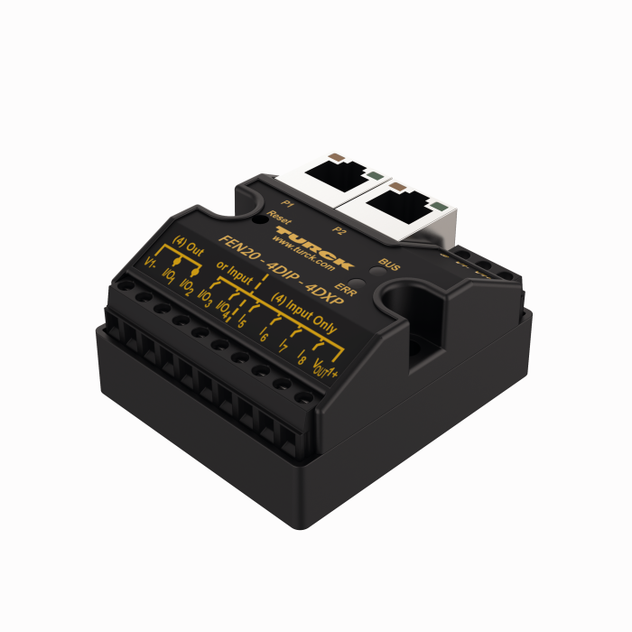

Turck FEN20-4DIP-4DXP
