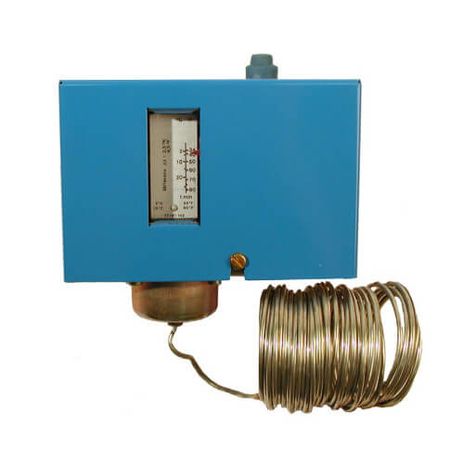

KMC CTE-3017

Tstat: Low Limit, Manual Reset, DPDT, 20’

This low limit controller is a DPDT device designed for use on HVAC equipment requiring low-temperature control and/or indication in duct work or on heating/cooling coils.

On a decrease in sensed temperature, the unit will actuate at its setpoint. It will reset when the reset button is pushed and the sensed temperature is at least 5° F (2.8° C) above the setpoint. A test lever, located under the cover, allows the unit to be manually actuated to facilitate system checkout.

For use in stratified airstreams, the unit will respond to the lowest temperature sensed along any one foot section of the sensing element.

To aid installation of capillary, five HMO-4523 capillary-mounting clips are shipped.

Features:

• DPDT (dual SPDT) switching action
• 20-foot capillary
• Responsive to lowest temperature sensed along any one foot section of capillary element
• Setpoint visible through front cover and adjustable from top of case
• Manual reset
• Reset disabled until temperature rises at least 5°F (2.8° C) above the setpoint
• Manual testing lever inside the cover
