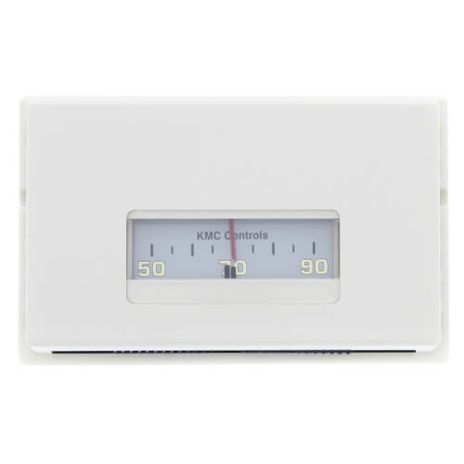

KMC CTE-5104-10

Tstat: Dual, DA Cooling with Reheat, Horiz F

The scale plate assembly and the cover are not included with the thermostat model base and must be ordered separately or as part of a (-10) value package containing the most frequently ordered accessories. Adding -10 to the thermostat model (e.g., CTE-5101-10) orders “package.” Packages contain one of each of the following models and accessories:

• CTE-5100 series thermostat base
• HPO-0060-10 horizontal scale plate, degrees F
• HPO-1511 light almond full window ABS thermostat cover
• HMO-5030 light almond backplate kit w/ matching decorative plate
• HPO-1320 label strip

The CTE-5100 Electronic Room Thermostat series is designed for use with the CSP-5001/5002 Flow Controller-Actuator and/or the REE-1000/4000 series auxiliary relays. Other high impedance (10K ohms or higher) controls, such as MEP series actuators and VEB series valves requiring a 0 to 10 VDC control circuit, may be controlled via any of the CTE-5100 series thermostats. The CTE-5100 series thermostats have both limited and non-limited outputs. The limited output is used to provide adjustable minimum and maximum limits to a CSP-5001/5002 or impose electronic limits to a proportional actuator or valve.

Models are available for cooling, heating, cooling with reheat, cooling/heating changeover, day/night, or night/day applications. Temperature averaging and/or overrides are also available.

All thermostats require a scale plate assembly and cover, which may be ordered separately or as part of a value package containing the most frequently ordered accessories (see the Accessories and Value Packages sections). Thermostat and accessories styling feature the setpoint indicator and/or thermometer to be visible or concealed, setpoint adjustment locked or restricted, vertical or horizontal mounting, and attractive color finishes in plastic or metal.

Features:

• Available for cooling, heating, cooling w/reheat, cooling/heating changeover, day/night, or night/day applications
• Single or dual setpoint models
• Outputs w/ adjustable min./max. limits or no limits
• Visible or hidden setpoint indicator
