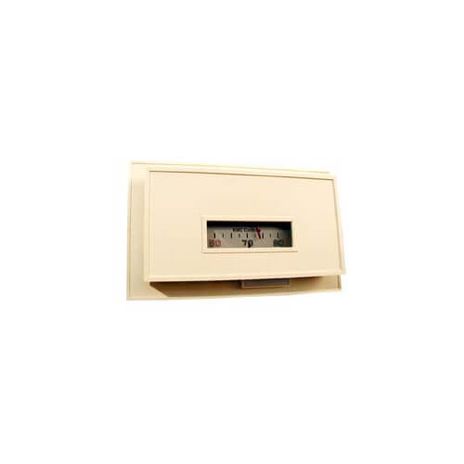

KMC CTE-1103-10

Tstat: Fan Box, Dual, DA/RA, Horiz F

The KMC CTE-1103 electronic thermostat is designed for use with specific CEE/CEP/CSE/CSP-4000 series controller-actuators to control damper actuators and/or valves in HVAC systems. The abil­i­ty to adjust minimum and maximum limits is at the ther­mo­stat rather than the controller. This is a dual setpoint ther­mo­stat for heating/cooling applications. Several mounting methods are available.

Additional outputs are provided for control of optional KMC REE-4000 series relay modules. The 0–6 VDC output (T3/T4) are not restricted by the minimum and maximum control points.

Cover construction allows for the setpoint indicator and thermometer to be either visible or concealed. Optional ac­ces­so­ries include an insert for concealing the window and stops to lock/restrict the setpoint adjustments.

A temperature output (A) allows temperature averaging with remote temperature transmitters, such as the TTE-1001.

An optional XEE-4002 9.1 VDC power supply module can power the thermostat. Then the thermostat can be used (without the controller-actuator) to control a damper or valve operated by an MEP series actuator or to control other devices via optional REE-4000 series relays.

Features

• Dual setpoint for heating/cooling applications
• Adjustable min/max temperature limits
• Additional output available for control of KMC REE series relay modules
• Visible or hidden setpoint indicator
• Heating and cooling flow adjustments

Note: For many applications, the CTE-1103 can be replaced by a CTE-5202 electronic thermostat with an LCD display
