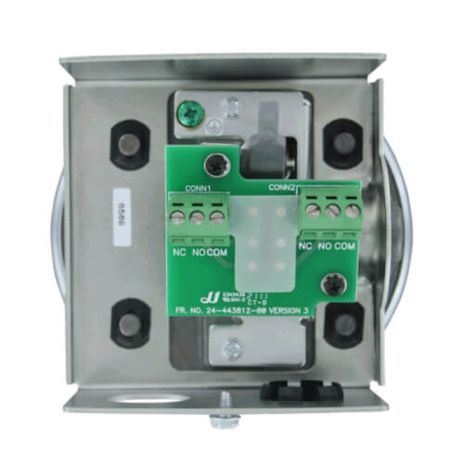

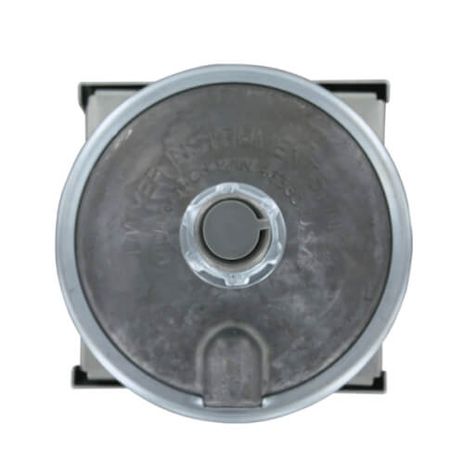

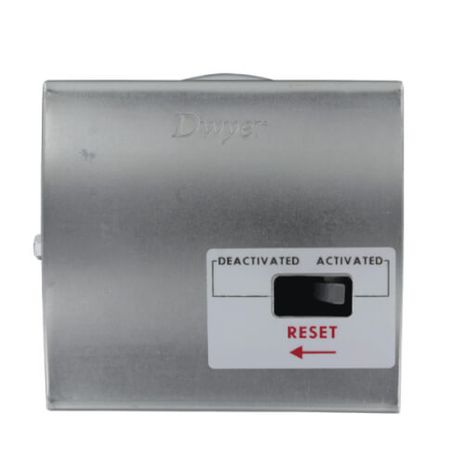

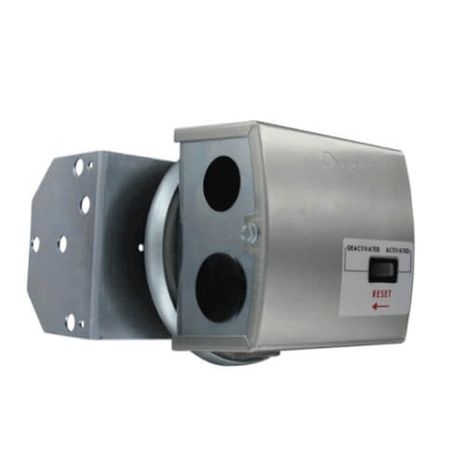

Dwyer 1831-1-RA-S
SKU: CS3006532MPN: 1831-1-RA-SAlternate Part #: 114025-50
1831-1-RA-S 2.5 TO 9 IN MR
$188.24
Unit3 in stock
Product Details
Differential pressure switch, manual reset, DPDT, activate on increase, silicone diaphragm, range 2.5-9” w.c.
Attributes
| Actuation Time Difference | 1 millisecond maximum actuation delay between contacts. |
| Commodity Code | 2401 |
| Electrical Connection | Screw type terminal block. |
| Electrical Rating | 4 A @ 125/250 VAC. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Pressure Limit | 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge. |
| Process Connection | ⅛” female NPT. |
| Repeatability | ±4% max. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Screw type inside mounting spud. |
| Switch Type | 2 SPDT. |
| Wetted Material | Consult factory. |
Specifications
| SKU | CS3006532 |
|---|---|
| MPN | 1831-1-RA-S |
| Alternate Part # | 114025-50 |
