Turck BI5-G18-AZ3X-B1331

SKU: CS1014517MPN: BI5-G18-AZ3X-B1331Alternate Part #: 43720UPC/EAN: 4047101095579

43720 - FERRITE, BARREL, AC, CON. ⅞IN.

Turck BI5-G18-AN6X-B1341 50MM, BI5-G18-AP6X-B1341 50MM, BI5-G18-AZ3X-B1331, BI5-G18-RZ3X-B1331, BI8-EG18H-ADZ30X2-B1331
$176.52
Unit
7 in stock
remove
add

Product Details

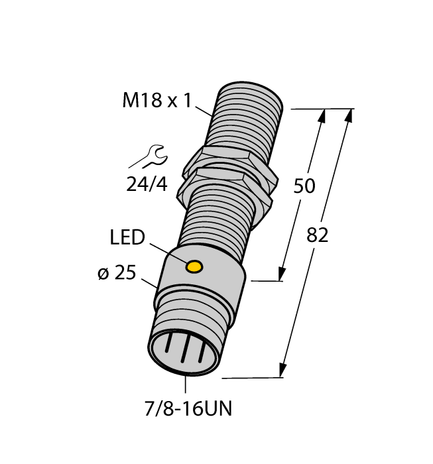

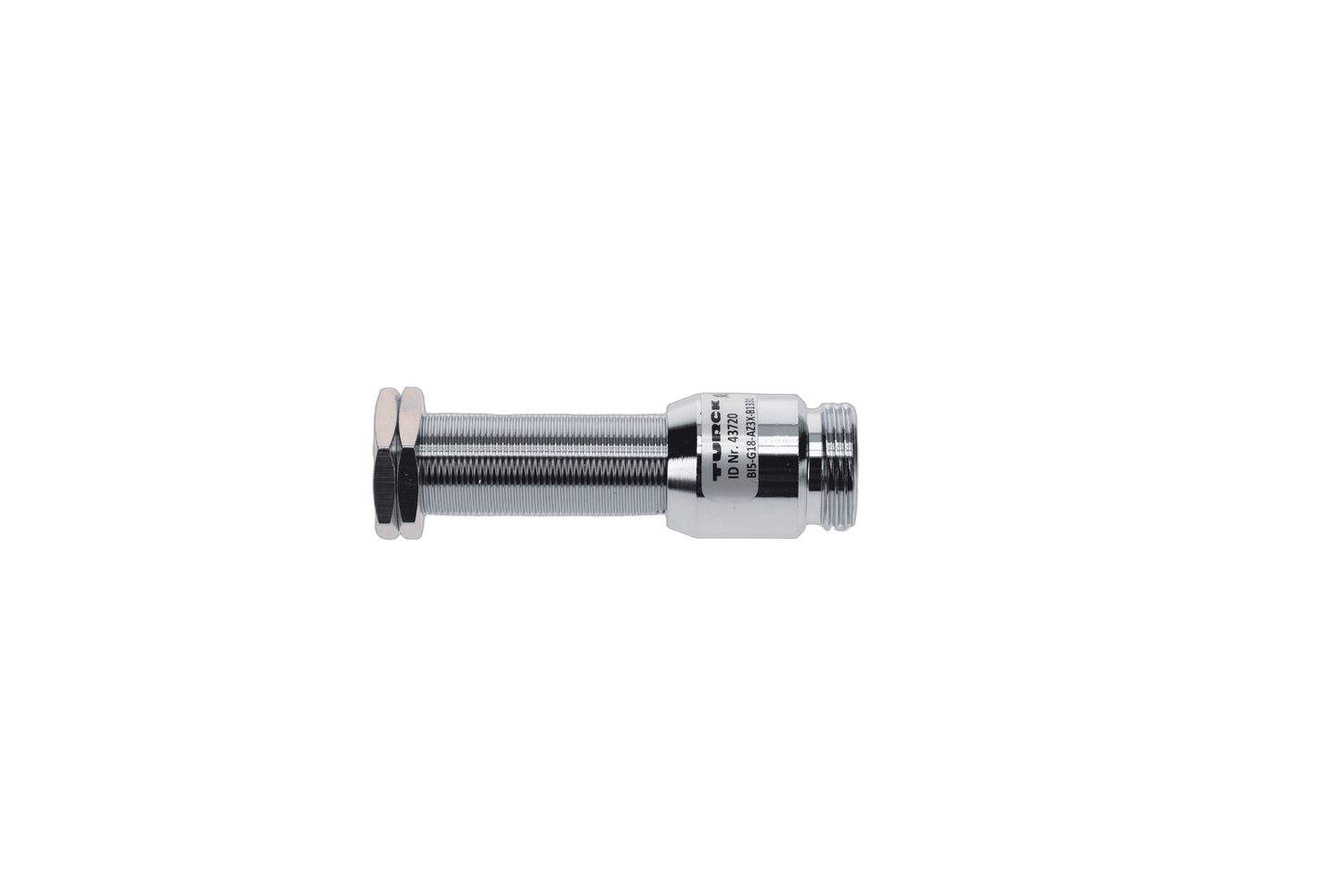

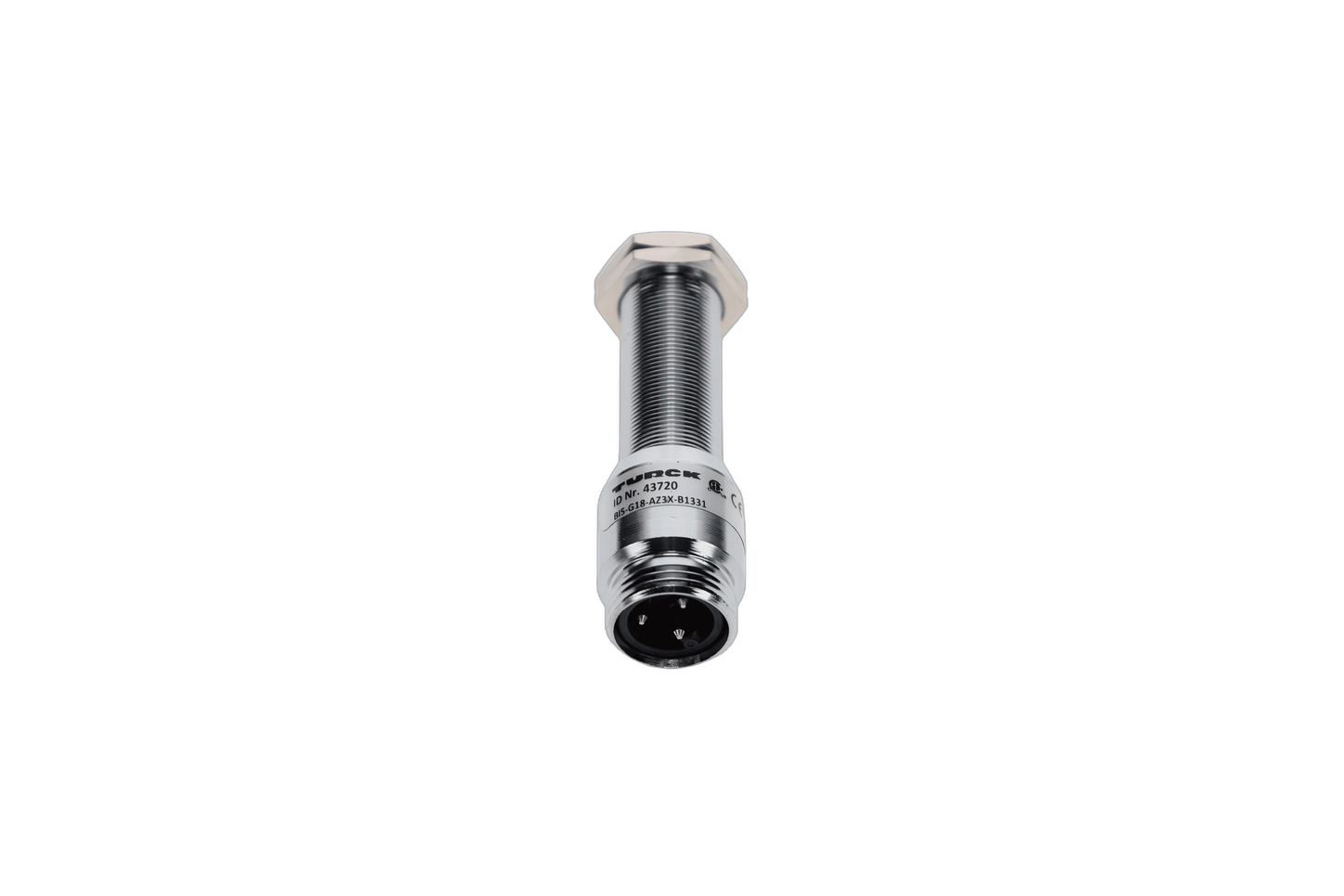

Inductive Sensor

  • Threaded barrel, M18 x 1
  • Chrome-plated brass
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • NO contact
  • ⅞” connector

Attributes

Ambient Temperature -25…+70 °C
Construction Size M18 x 1
Customs Tariff Number 85365080900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, ⅞″
Housing Material Metal, CuZn, Chrome-plated
Mounting Flush
Operating Voltage 20…250 VAC / 10…300 VDC
Output Function NO contact, 2-wire
Protection Class IP67
Rated Switching Distance 5 mm
Switching Frequency 0.020 kHz

Specifications

SKUCS1014517
MPNBI5-G18-AZ3X-B1331
Alternate Part #43720
UPC/EAN4047101095579
