Veris H822-20
SKU: CS2542079MPN: H822-20Alternate Part #: VER-H822-20

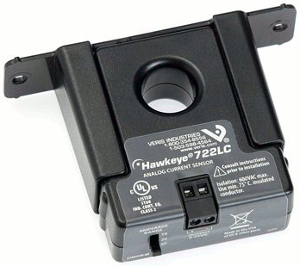

Current Sensor: 0-5VDC Analog Output, 0-20 Amperage Range, Solid Core Housing, UL Listed, RoHS Compliant
$35.14
UnitAvailable on backorder
Product Details
Current Sensor:
- 0-5VDC Analog Output* 0-20 Amperage Range* Solid Core Housing* UL Listed* RoHS Compliant
Attributes
| Analogue Output Type | 0…5 V DC |
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -15-60 °C |
| Product Certifications | UL; CE |
| Type of Measurement | AC current |
| Device Application | building automation systems |
| Mounting Support | solid core housing |
| Sensor Type | current transducer, AC |
| Relative Humidity | 10-90 % RH, non-condensing |
| Network Frequency | 50…60 Hz |
| AWG Gauge | AWG 24…AWG 14 |
| Current Measurement Range | 0…20 A |
| Opening Diameter | 18 mm |
Specifications
| SKU | CS2542079 |
|---|---|
| MPN | H822-20 |
| Alternate Part # | VER-H822-20 |
