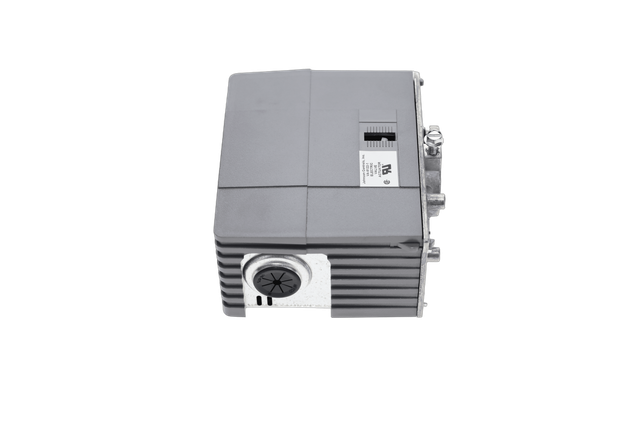

Johnson Controls VA-7010-8003

ACTUATOR 230 VAC ON/OFF

The VA-7010 Series Electric Valve Actuators provide two-position (open/closed) control and can easily be field mounted with a threaded coupling onto VG4000 and VG5000 Series Zone Valves. A lever at the side of the actuator housing can be used to open the mounted valve manually for servicing.

Features:

• Low voltage or line voltage models provide application flexibility
• AC stall type motor ensures quiet operation
• Manual lever allows manual position mode for servicing
• Flat profile design with small side clearance provides mounting close to flat surfaces and saves space
• Actuator can be mounted after the valve body is installed, simplifying installation in confined spaces while allowing application flexibility
• Actuator can be rotated after mounting, providing easier wiring by locating the wiring conduit entry in any direction

Specifications:

• Action: On/Off
• Voltage: 230 VAC
• Nominal 10 Sec. Full Stroke Time On
• Nominal 5 Sec. Full Stroke Time Offf
• Enclosure: NEMA 1
• Lead Wires: 20”
