Turck NI15U-EM18WD-AP6X-H1141
SKU: CS2434893MPN: NI15U-EM18WD-AP6X-H1141Alternate Part #: 1634818UPC/EAN: 4047101128819
1634818 - UPROX, BARREL, DC, CON. M12
$192.44
Unit5 in stock
Product Details
Inductive Sensor
For the Food Industry

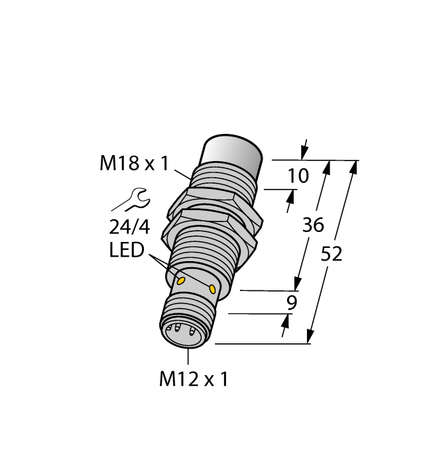

- M18 × 1 threaded barrel
- Stainless steel, 1.4404
- Front cap made of liquid crystal polymer
- Factor 1 for all metals
- Resistant to magnetic fields
- For temperatures of -40 °C…+100 °C
- High protection class IP69K for harsh environments
- Special double-lip seal
- Protection against all common acidic and alkaline cleaning agents
- Laser engraved label, permanently legible
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -40…+100 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4404 (AISI 316L) |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68/IP69K |
| Rated Switching Distance | 15 mm |
| Special Feature | uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS2434893 |
|---|---|
| MPN | NI15U-EM18WD-AP6X-H1141 |
| Alternate Part # | 1634818 |
| UPC/EAN | 4047101128819 |
