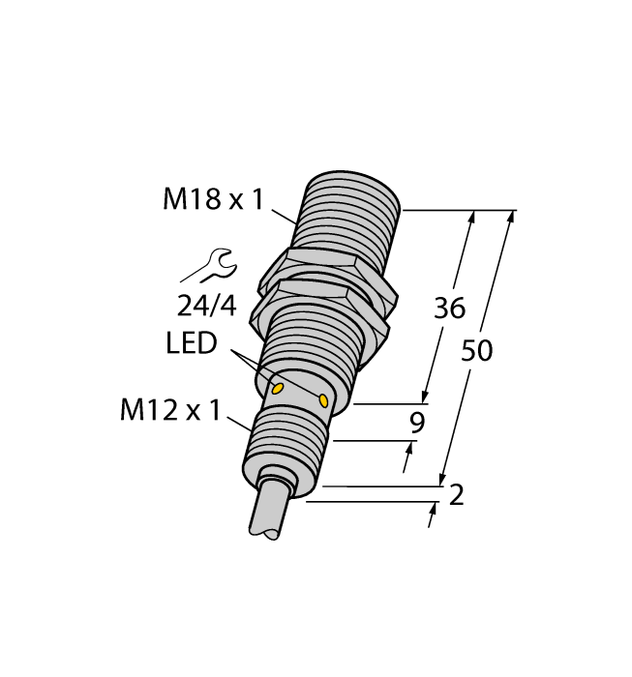

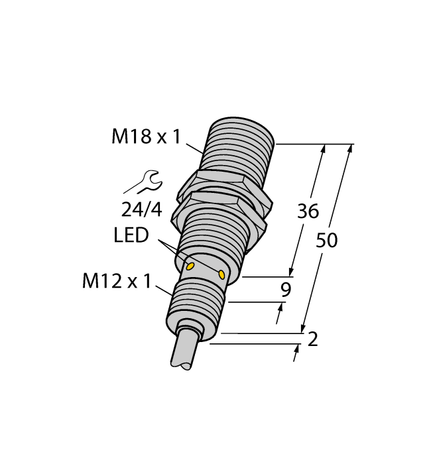

Turck BI8U-EM18WD-AP6X 7M
SKU: CS3789901MPN: BI8U-EM18WD-AP6X 7MAlternate Part #: 1634911UPC/EAN: 4047101129731
1634911 - UPROX, BARREL, DC, CABLE
$192.44
UnitAvailable on backorder
Product Details
Inductive Sensor
For the Food Industry
- Threaded barrel, M18 x 1
- Stainless steel, 1.4404
- Front cap made of liquid crystal polymer
- Factor 1 for all metals
- Resistant to magnetic fields
- For temperatures of -40 °C…+100 °C
- High protection class IP69K for harsh environments
- Special double-lip seal
- Protection against all common acidic and alkaline cleaning agents
- Laser engraved label, permanently legible
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Cable connection
Attributes
| Ambient Temperature | -40…+100 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Cable |
| Housing Material | Stainless steel, 1.4404 (AISI 316L) |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68/IP69K |
| Rated Switching Distance | 8 mm |
| Special Feature | uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant |
| Switching Frequency | 1.50 kHz |
Specifications
| SKU | CS3789901 |
|---|---|
| MPN | BI8U-EM18WD-AP6X 7M |
| Alternate Part # | 1634911 |
| UPC/EAN | 4047101129731 |
