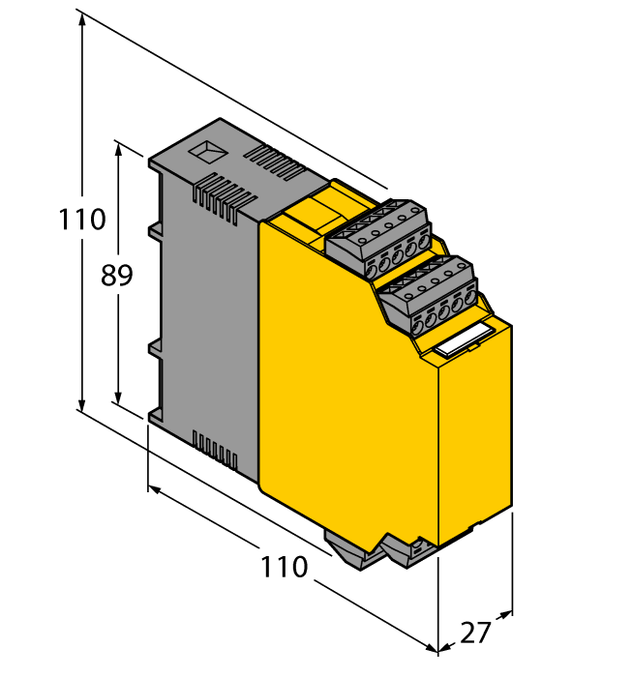

Turck IM35-11EX-HI/24VDC
SKU: CS2433773MPN: IM35-11EX-HI/24VDCAlternate Part #: 7506516UPC/EAN: 4047101117288
7506516 - IM.AO.1-CHANNEL
$568.00
UnitAvailable on backorder
Product Details
Analog Signal Isolator
1-channel
- Intelligent actuators supplied via HART communication interface
- Input circuit: 0/4…20 mA
- Output circuit: 0/4…20 mA, intrinsically safe
- SIL2
- Removable terminal blocks, screwable, with 2 mm test box
- Galvanic isolation of input circuits, output circuits and power supply
- ATEX, IECEx, UL, CFMUS, TR CU, KOSHA, CCOE
- Installation in zone 2
Attributes
| Approvals | ATEX, IECEx, UL, cFMus, TR CU |
| Customs Tariff Number | 85437090990.0000 |
| Device Type | Analog signal isolator - Output field side |
| Ecl Ss Code V5 1 4 | 27210107 -/- Transducer (universal) |
| Electrical Connection | 4 × 3-pin removable terminal blocks with test socket, reverse polarity protected, screw terminal |
| Ex Version | yes |
| Functional Safety Sil Pl | SIL2 |
| Nominal Voltage | 24 VDC |
| Number Of Channels | 1 |
| Product Series | IM |
| Protection Class | IP20 |
| Signal Type | Analog output (HART transparent) |
Specifications
| SKU | CS2433773 |
|---|---|
| MPN | IM35-11EX-HI/24VDC |
| Alternate Part # | 7506516 |
| UPC/EAN | 4047101117288 |
