Turck NI50U-CP40-VP4X2
SKU: CS2420257MPN: NI50U-CP40-VP4X2Alternate Part #: 1538303UPC/EAN: 4047101073348
1538303 - UPROX, RECT., DC, TERMINALS
$271.72
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 40 mm
- Variable orientation of active face in 9 directions
- Plastic, PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Auto-compensation protects against pre-damping
- Partially embeddable
- DC 4-wire, 10…65 VDC
- Changeover contact, PNP output
- Terminal chamber
Attributes
| Ambient Temperature | -30…+85 °C |

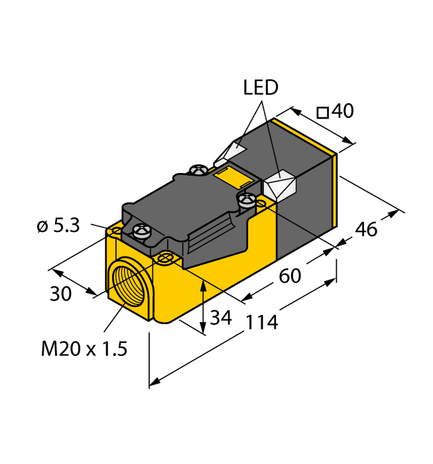

| Construction Size | 114 x 40 x 40 mm, CP40 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Terminal chamber |
| Housing Material | Plastic, PBT-GF30-V0, Black |
| Mounting | Non-flush |
| Operating Voltage | 10…65 VDC |
| Output Function | Complementary contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 50 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS2420257 |
|---|---|
| MPN | NI50U-CP40-VP4X2 |
| Alternate Part # | 1538303 |
| UPC/EAN | 4047101073348 |
You may also like
Turck NI50U-CP40-AP6X2/S10
$247.60Unit
Turck NI50U-CP40-VP4X2-H1141
$294.03UnitTurck NI50U-CP40-AN6X2/S10
$213.33UnitTurck NI50U-CP40-VN4X2/S10
$271.72Unit
Turck BI20U-CP40-VP4X2
$203.39UnitTurck NI40U-CP40-VP4X2/S10
$311.26Unit
Turck BI15U-CP40-VP4X2/S10
$260.07Unit

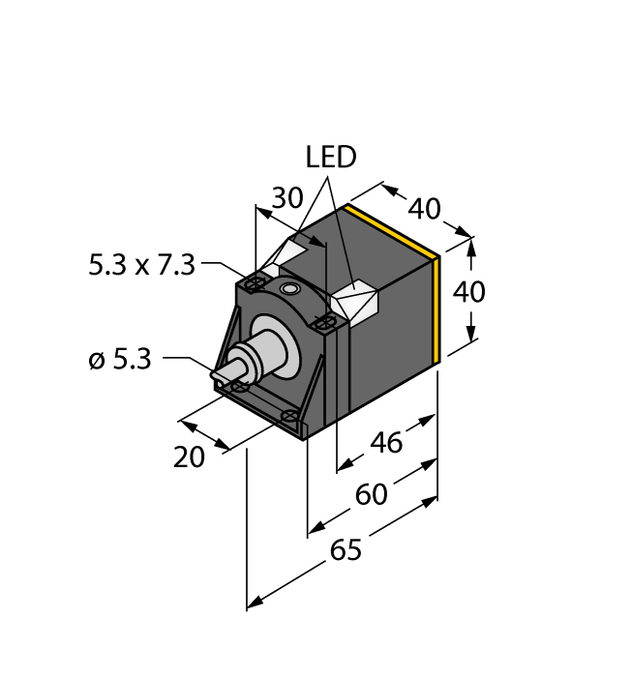

Turck NI50U-CK40-VP4X2/S105 10M
