Turck NI50U-CP40-VP4X2-H1141
SKU: CS4209309MPN: NI50U-CP40-VP4X2-H1141Alternate Part #: 1540613UPC/EAN: 4047101251258
1540613 - UPROX, RECT., DC, CON. M12
$294.03
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 40 mm
- Variable orientation of active face in 9 directions
- Plastic, PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Auto-compensation protects against pre-damping
- Partially embeddable
- DC 4-wire, 10…65 VDC
- Changeover contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |

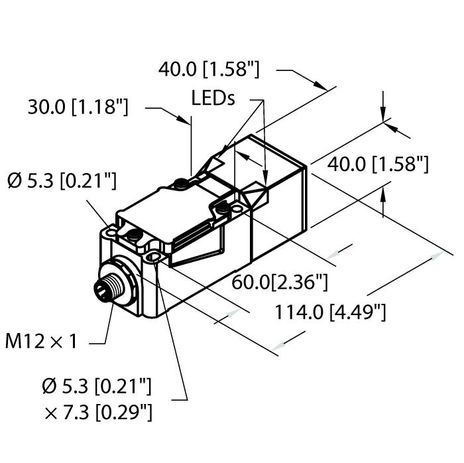

| Construction Size | 114 x 40 x 40 mm, CP40 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PBT-GF30-V0, Black |
| Mounting | Non-flush |
| Operating Voltage | 10…65 VDC |
| Output Function | Complementary contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 50 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS4209309 |
|---|---|
| MPN | NI50U-CP40-VP4X2-H1141 |
| Alternate Part # | 1540613 |
| UPC/EAN | 4047101251258 |
