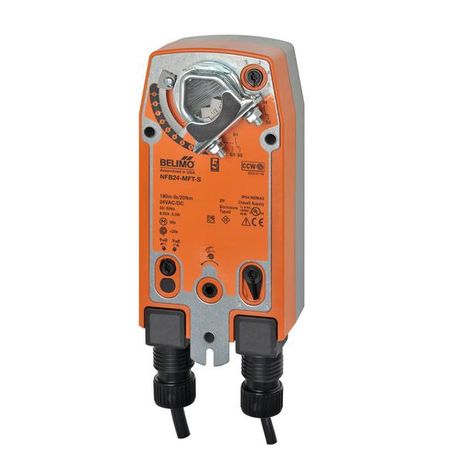

Belimo NFB24-MFT-S

Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable

Belimo’s new NFB and NFX Series sets a new standard for direct-coupled spring return actuators in the HVAC market. A compact size, low power consumption and 50% increase in minimum torque output set the new NFB and NFX apart from other market solutions. More torque combined with faster running times for both motor drive and spring return widen the application fields giving customers a cost effective solution with high quality.

Features:

• 90 in-lbs (10 Nm) min. torque. 50% more than original NF.
• New smaller housing for tight spaces, plus reduced shaft-center to edge distance: 1.25” compared to 1.97” with today’s NF.
• Manual override is now standard on all models. Provides same benefits as today’s AF series; faster installation and easier maintenance of equipment with lock-in-place switch.
• Universal power supply (On/Off models only) can accept 24 up to 240 VAC. One actuator for all power supply voltages, ideal for customers with limited storage space (store rooms, service vehicles, etc)
• 3, 10 and 16 ft cable options just like non-spring return actuator (X models only)
• Built-in mechanical limit stop, a separate accessory no longer needed.
