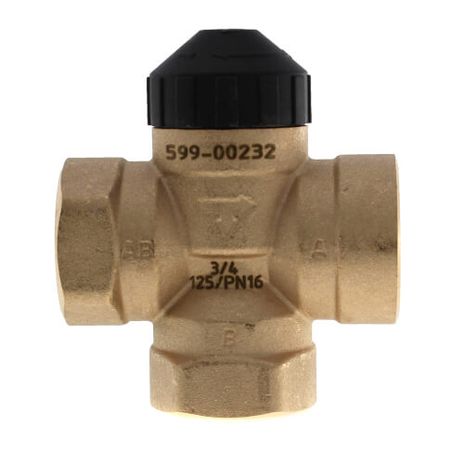

Siemens 599-00232
SKU: CS168835MPN: 599-00232UPC/EAN: 4034106331962
599 Series Zone Valve, ¾”, 3W, 4.1Cv, linear, ANSI 125, 1/10” stroke, NPT
$49.52
UnitAvailable on backorder
Product Details
599 Series Zone Valve, ¾-inch, three-way, globe body style, 4.1 Cv, diverting or mixing (limited application), controlled medium is water or glycol solutions to 50%, linear characteristic, ANSI Class 125, 1/10-inch (2.5 mm) stroke, 44 psi (303 kPa) close-off pressure, NPT end connections, and direct-coupled universal bonnet for actuator connection.
Attributes
| Connecting Thread | NPT |
| End Connection | NPT |
| Flow Characteristic | Linear |
| Flow Coefficient Cv | 4.0999999046326 |
| Leakage Rate | ANSI Class III |
| Material Inside Set | Trim: Brass;Stem: Stainless Steel ASTM A582 Type 303;Seat: Metal-to-Metal;Packing: EPDM O-ring |
| Material Valve Body | Brass |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 34…230 ºF |
| Medium Temperature F Max | 230 ºF |
| Medium Temperature F Min | 34 ºF |
| Mounting Position | vertical, horizontal, upright |
| Permissible Operating Pressure | 861 kPa; 44 psi |
| Port Configuration | 3-Way Diverting |
| Stroke | 2.5 mm |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 0.75 in |
| Valve Type | Three-way |
Specifications
| SKU | CS168835 |
|---|---|
| MPN | 599-00232 |
| UPC/EAN | 4034106331962 |
You may also like
Siemens 599-00532
$49.52Unit
Siemens 599-00212
$35.29Unit
Siemens 599-00512
$39.95Unit
Siemens 599-00231
$41.83Unit
Siemens 599-00234
$41.83Unit

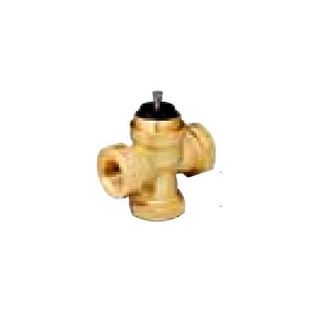

Siemens 599-00230
