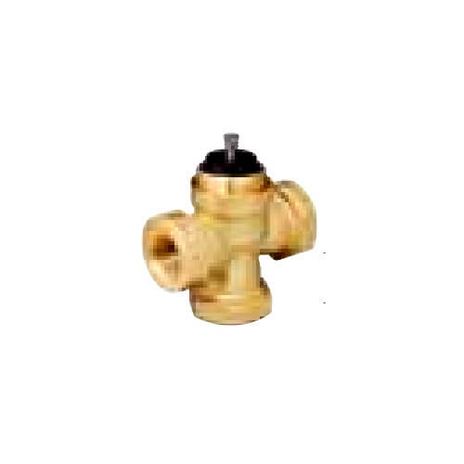

Siemens 599-00230

Name: Siemens 599-00230
Brand: Siemens Building Technologies
SKU: CS393872
Price: 41.83 USD
Availability: OutOfStock

SKU: CS393872MPN: 599-00230UPC/EAN: 4034106331948

599 Series Zone Valve, ½”, 3W, 1.0Cv, linear, ANSI 125, 1/10” stroke, NPT

$41.83

Unit

Available on backorder

Quantity

remove

add

Product Details

599 Series Zone Valve, ½-inch, three-way, globe body style, 1.0 Cv, diverting or mixing (limited application), controlled medium is water or glycol solutions to 50%, linear characteristic, ANSI Class 125, 1/10-inch (2.5 mm) stroke, 44 psi (303 kPa) close-off pressure, NPT end connections, and direct-coupled universal bonnet for actuator connection.

Attributes

Connecting Thread	NPT
End Connection	NPT
Flow Characteristic	Linear
Flow Coefficient Cv	1.0000
Leakage Rate	ANSI Class III
Material Inside Set	Trim: Brass;Stem: Stainless Steel ASTM A582 Type 303;Seat: Metal-to-Metal;Packing: EPDM O-ring
Material Valve Body	Brass
Medium	Water;Water with anti-freeze
Medium Temperature	34…230 ºF
Medium Temperature F Max	230 ºF
Medium Temperature F Min	34 ºF
Mounting Position	vertical, horizontal, upright
Permissible Operating Pressure	861 kPa; 44 psi
Port Configuration	3-Way Diverting
Stroke	1/10 in
Trim Material	Brass
Valve Body Style	Stroke-Globe
Valve Size	0.5 in
Valve Type	Three-way
