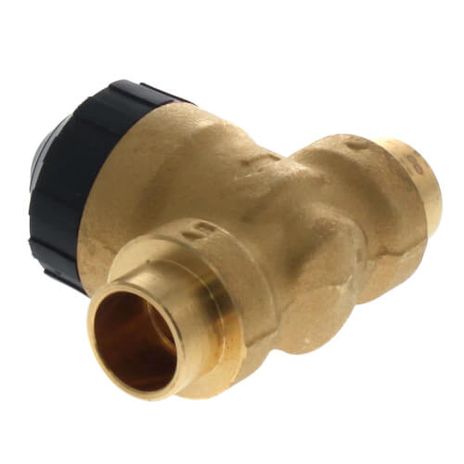

Siemens 599-00513
SKU: CS5317748MPN: 599-00513UPC/EAN: 804766016349
599 Series 2W Zone Valve, 1”, 7.0 Cv, linear, ANSI 125, 1/10” stroke, SWT
$51.49
UnitAvailable on backorder
Product Details
599 Series Zone Valve, 1-inch, two-way, globe body style, 7.0 Cv, normally open/closed determined by actuator, controlled medium is water or glycol solutions to 50%, linear characteristic, ANSI Class 125, 1/10-inch (2.5 mm) stroke, 22 psi (152 kPa) close-off pressure, SWT end connections, and direct-coupled universal bonnet for actuator connection.
Attributes
| Connecting Thread | SWT |
| End Connection | SWT |
| Flow Characteristic | Linear |
| Flow Coefficient Cv | 7.0000 |
| Leakage Rate | ANSI Class III |
| Material Inside Set | Trim: Brass;Stem: Stainless Steel ASTM A582 Type 303;Seat: Metal-to-Metal;Packing: EPDM O-ring |
| Material Valve Body | Brass |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 34…230 ºF |
| Medium Temperature F Max | 230 ºF |
| Medium Temperature F Min | 34 ºF |
| Mounting Position | vertical, horizontal, upright |
| Permissible Operating Pressure | 861 kPa; 22 psi |
| Port Configuration | 2-Way Normally closed |
| Stroke | 2.5 mm |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 1 in |
| Valve Type | Two-way |
Specifications
| SKU | CS5317748 |
|---|---|
| MPN | 599-00513 |
| UPC/EAN | 804766016349 |
