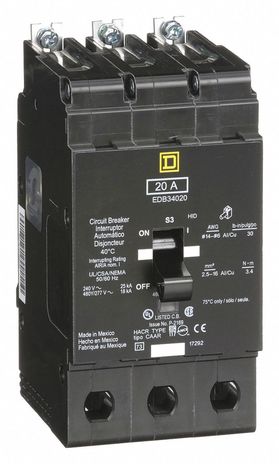

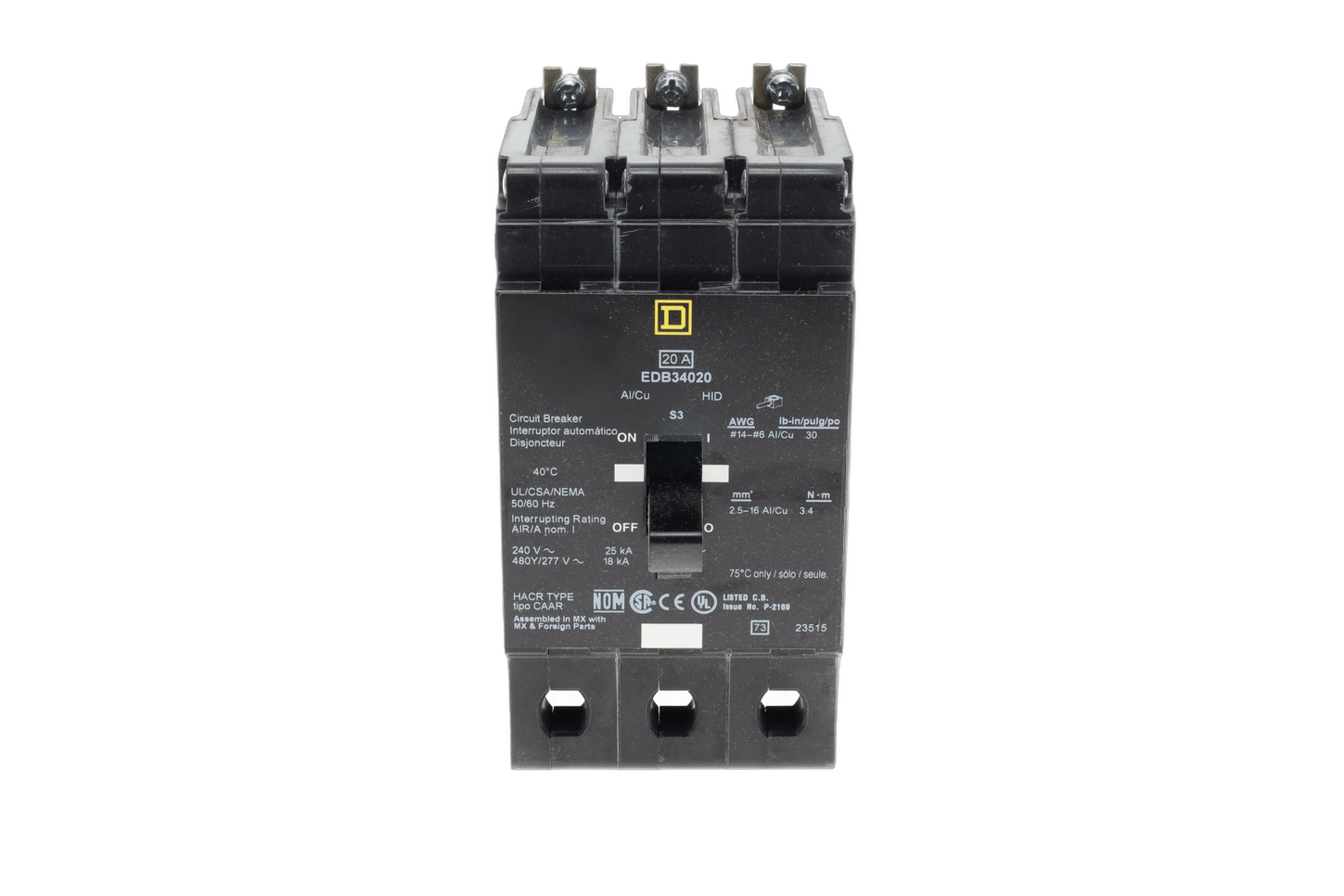

Square D EDB34020
SKU: CS1661527MPN: EDB34020UPC/EAN: 785901875246
Mini circuit breaker, E-Frame, 20A, 3 pole, 480Y/277 VAC, 25 kA max, bolt on
$305.70
Unit2 in stock
Product Details
Miniature Circuit Breaker
- Line Rated Current: 20A* Number of Poles: 3-Pole* System Voltage: 480Y/277V AC* Breaking Capacity: 18 kA 277 VAC, 25kA 240 VAC* Mounting Mode: Bolt-on* Electrical Connection: Lugs
Attributes
| In Rated Current | 20 A |
| In Rated Current 1 | 20 A |
| Breaking Capacity Code | D |
| Circuit Breaker Application | HID rated# #HACR rated |
| Device Short Name | EDB |
| Holding Current | 270 A |
| Local Signalling | trip indicator |
| Module Type | E-Frame |
| Mounting Mode | bolt-on |
| Number Of Poles | 3.0 |
| Number Of Spaces | 3 |
| Number Of Spaces Required | 3.0000 |
| Product Certifications | cULus |
| Product Or Component Type | miniature circuit-breaker |
| Protection Type | short-circuit# #overload |
| Range Of Product | 125 A Frame EDB-EGB-EJB |
| Trip Unit Rating | 875-875 A |
| Trip Unit Technology | thermal-magnetic |
Specifications
| SKU | CS1661527 |
|---|---|
| MPN | EDB34020 |
| UPC/EAN | 785901875246 |
