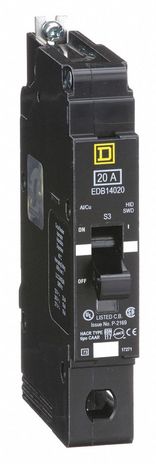

Square D EDB14020
SKU: CS1661318MPN: EDB14020UPC/EAN: 785901878902
Mini circuit breaker, E-Frame, 20A, 1 pole, 277 VAC, 25 kA max, bolt on
$68.59
UnitAvailable on backorder
Product Details
Miniature Circuit Breaker
- Line Rated Current: 20A* Number of Poles: 1-Pole* System Voltage: 277V* Breaking Capacity: 18 kA 277 VAC, 25kA 240 VAC* Mounting Mode: Bolt-on* Electrical Connection: Lugs
Attributes
| In Rated Current | 20 A |
| In Rated Current 1 | 20 A |
| Breaking Capacity Code | D |
| Circuit Breaker Application | HID rated# #Switching Duty rated# #HACR rated |
| Device Short Name | EDB |
| Holding Current | 270 A |
| Local Signalling | trip indicator |
| Module Type | E-Frame |
| Mounting Mode | bolt-on |
| Number Of Poles | 1.0 |
| Number Of Spaces | 1 |
| Number Of Spaces Required | 1.0000 |
| Product Certifications | cULus# #IEC |
| Product Or Component Type | miniature circuit-breaker |
| Protection Type | short-circuit# #overload |
| Range Of Product | 125 A Frame EDB-EGB-EJB |
| Trip Unit Rating | 875-875 A |
| Trip Unit Technology | thermal-magnetic |
Specifications
| SKU | CS1661318 |
|---|---|
| MPN | EDB14020 |
| UPC/EAN | 785901878902 |
You may also like

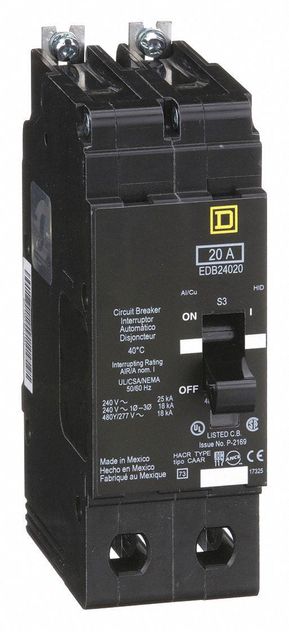

Square D EDB24020
Contact us for pricing and availability

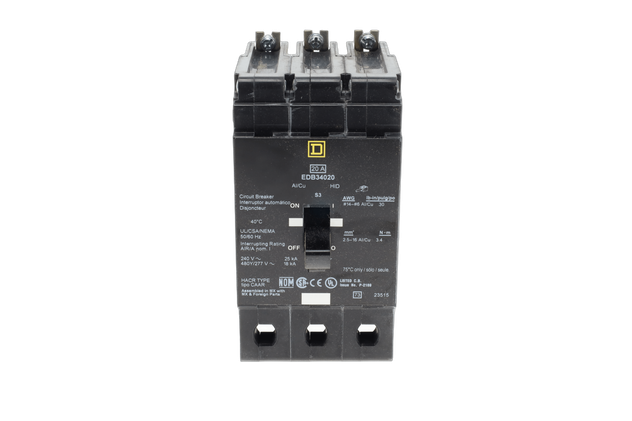

Square D EDB34020
$305.70Unit

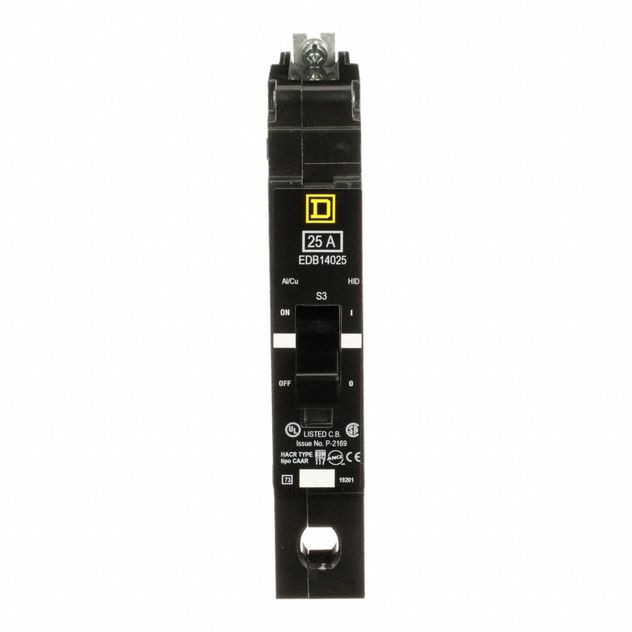

Square D EDB14025
Contact us for pricing and availability
Square D EDB14015
$126.73Unit
Square D EDB24040
Contact us for pricing and availability
Square D EGB24020
Contact us for pricing and availability
Square D EDB34015
$481.94Unit
Square D EDB34025
Contact us for pricing and availability
Square D EJB34020
Contact us for pricing and availability
Square D EGB34020
Contact us for pricing and availability

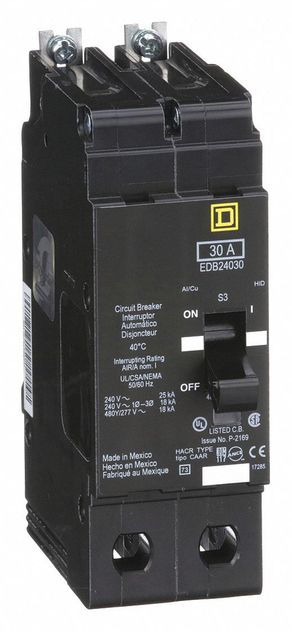

Square D EDB24030
Contact us for pricing and availability

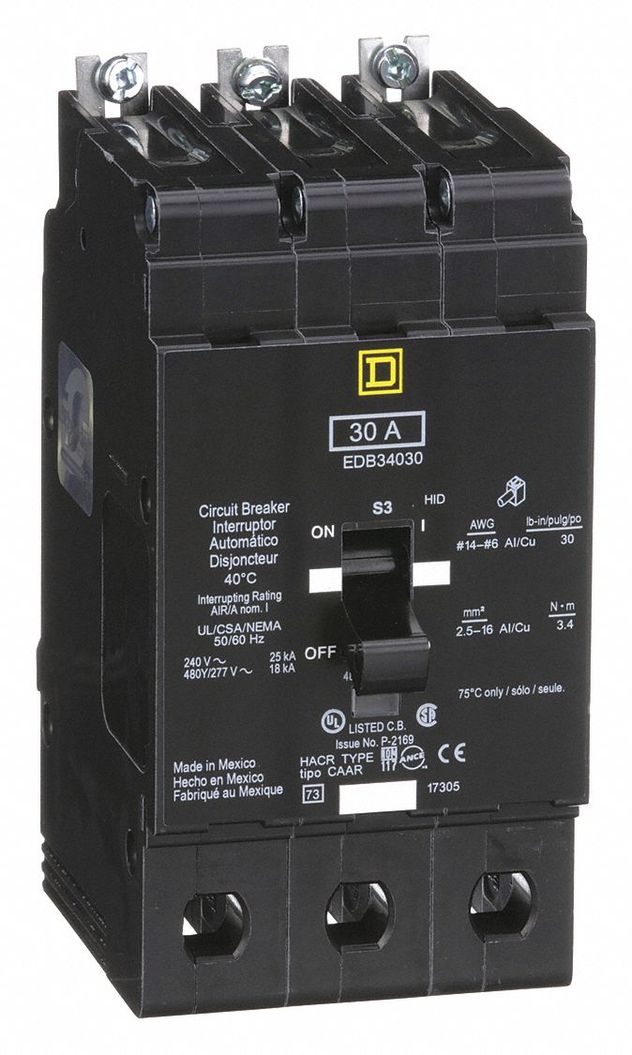

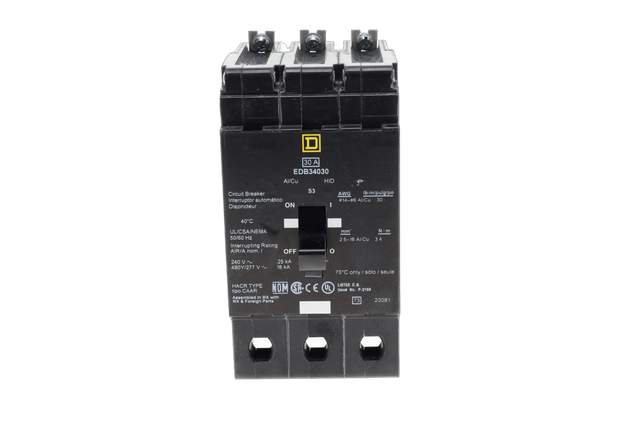

Square D EDB34030
