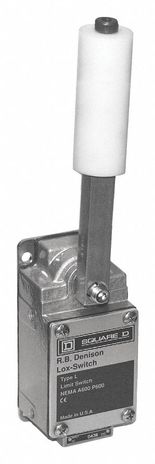

Square D L525WDL2M58

Name: Square D L525WDL2M58
Brand: Square D
SKU: CS1656777
Availability: OutOfStock

SKU: CS1656777MPN: L525WDL2M58UPC/EAN: 785901170082

Limit switch, L525, L100/300, 600 V 12amp type l +options

Product Details

LIMIT SWITCH 600V 12AMP TYPE L +OPTIONS

Ithe Conventional Enclosed Thermal Current	20 A
Ambient Air Temperature For Operation	-10-185 °F
Ambient Air Temperature For Operation 1	-10-185 °F
Ambient Air Temperature For Storage	-10-185 °F
Base Plate Style	style 2
Body Material	cast aluminium
Body Type	fixed
Contact Form	Form YY
Contact Operation	snap action
Contact Sequence Number	58.0000
Contacts Type And Composition	2 NC
Contacts Usage	-
Device Short Name	L525
Fixing Mode	by the body
Function Available	2 stages sequential
Head Type	rotary head
Maximum Displacement Angle	80 °
Minimum Torque For Tripping	150 ozf.in
Number Of Poles	2.0
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	belt conveyor switch
Protective Treatment	corrosion resistant gray paint
Range Of Product	L525
Sale Per Indivisible Quantity	1.0000
Series Name	severe duty mill
Switch Actuation	from left# #CW
Switch Function	DPST-NC-DB
Terminals Description Iso N 1	(5-6) right side contact# #(1-2) left side contact
Type Of Approach	lateral approach
