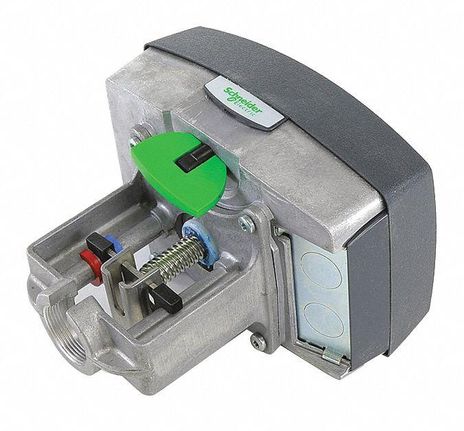

Schneider Electric M1500A-VB

SKU: CS1162072MPN: M1500A-VB

Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 1500 N, screw mount, NEMA 1 or 2

Schneider Electric M1500A-VB
$253.05
Unit
Available on backorder
remove
add

Product Details

Actuator: (M1500A-VB):

  • Actuator Type: Electric
  • Control Signal: Floating, Proportional
  • Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
  • Loss of Power Type: Non-Spring Return
  • Power Input Voltage: 20 to 29 VDC, 24 VAC, 24 VDC
  • Force: 1500 N
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 1
  • Product Line: Schneider Electric
  • Product Range: FORTA
  • Product Series: M1500
  • Actuator Use: Globe Valves

Attributes

Us Rated Supply Voltage 20…29 V DC 24 V AC/DC
Actuator linear
Ambient Air Temperature For Operation -10-50 °C
Ambient Air Temperature For Storage -25-65 °C
Analogue Input Range 0…10 V DC 4…20 mA with 500 Ohm resistor
Control Type manual override with 5/32 allen wrench
Force Lbf 337 lbf
Force N 1500 N
Motor Type brushless DC motor
Output Current 30 mA
Output Voltage 16 V DC
Product Destination globe valve
Product Or Component Type actuator
Relative Humidity 15-95 % non-condensing
Switch Function 2 SPDT (optional)
Targeted Region North America.
Taxoclass Id PTC_D54008_XXX

Specifications

SKUCS1162072
MPNM1500A-VB
