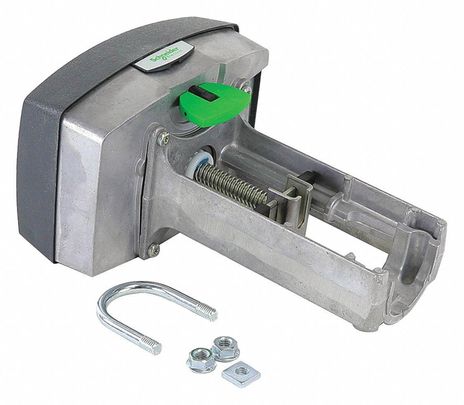

Schneider Electric M1500A-S2

Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 1500 N, 2 SPDT, U-bolt mount, NEMA 1 or 2

Actuator: (M1500A-S2):

• Actuator Type: Electric
• Control Signal: Floating, Proportional
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
• Loss of Power Type: Non-Spring Return
• Power Input Voltage: 20 to 29 VDC, 24 VAC, 24 VDC
• Force: 1500 N
• Mechanical Movement: Linear
• Auxiliary Switch: 2 SPDT
• Protection Rating: IP40, IP54, NEMA 1, NEMA 2
• Product Line: Schneider Electric
• Product Range: FORTA
• Product Series: M1500
• Actuator Use: Globe Valves

Product Alert: NEMA 2 (IP 54, vertical mount only) with both conduit connectors used. NEMA 1 IP40 with one connector used.
