Fireye All Products

Programmer. Selectable purge (30 sec min.), 10 and 15 sec. TFI, non-recycle.

Programmer, Selectable recycle/non-recycle function, TFI, and purge timing. Pilot cutoff, pilot stabilization, check-run switch.

Programmer, Relight function.

Programmer. Selectable purge (30 sec min.), 5 and 10 sec. TFI, non-recycle, early spark termination.

Programmer. Selectable purge (30 sec min.), 10 and 15 sec. TFI, recycle.

Programmer Module with Lockout

Program Module 30 sec. Purge 5/10 TFI

Programmer. Selectable purge (15 sec min), 5 and 10 sec TFI, selectable recycle/non-recycle, no modulation.

Programmer, Selectable recycle/non-recycle function, TFI, and purge timing.

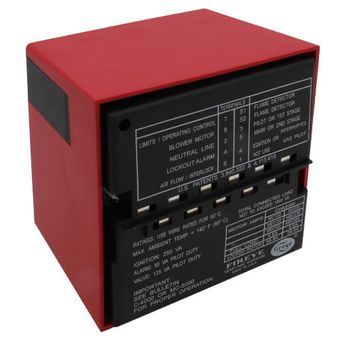

120 VAC, 50/60 Hz Chassis with remote reset.

Programmer. Selectable purge (0 sec min), 5 and 10 sec TFI, selectable recycle/non-recycle, no modulation.

SERVO Motor

Chassis, 120 VAC, 50/60 Hz with IR Auto-Check amplifier. UL, FM, CE Approved. Special application only, consult factory.

Programmer. Selectable purge (30 sec min.), selectable TFI via ED510 display, non-recycle.

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at start, 8 sec pilot stabilization.

Programmer, 15 sec purge, provides interrupted ignition, interrupted pilot, non re-cycle on flame fail.

Serviceman’s display kit. Consists of ED510 with back plate, MED2, and ED580-4.

120 VAC, 50/60 Hz Chassis with remote reset.

Programmer. Selectable purge (90 sec min), 5 and 10 sec TFI, selectable recycle/non-recycle, no modulation.

UL/CE Approved standalone parallel positioning controller, with up to ten (10) selectable FX servo-motor drives. 120VAC operation, use with plug-in…

SERVO-Motor 24VDC Terminal Block

Programmer. Selectable purge (30 sec min.), pilot stabilization, non-recycle, 10 and 10 sec TFI.

Programmer Module 10 sec. MTFI

Programmer Module 2 Stage Capability

Keypad selectable parameters, non-recycle operation, modulation, open/closed damper proving, 4 sec FFRT. Powered inputs provide indefinite hold, pi…

MicroM chassis with local reset; 120 VAC, 50/60 Hz, provides independent relay outputs on terminals 3 and 4. For use with MEP300 and MEP600 series …

Sealing coupling with quartz window, 1” NPT. Replaces 60-1199

Expansion module cable, 6 ft length.

Swivel mount adaptor, 1” NPT for 45UV5, 45RM, 45FS scanners.

Programmer, 5 sec TFI, lockout on flame failure.

Quick disconnect for 45UV5, 45RM1, 45RM2.

Integrated flame rectification comtrol, 120 VAC, 50 / 60 Hz, 5 sec purge, 10 sec PTFI, recycle operation. Can be used with UV90L-2 UV scanner, .

Firetron cell for 48PT2 only.

UV Scanner

Programmer. Selectable purge (30 sec min.), 10 and 30 sec. TFI, non-recycle.

Rectification Flame Amplifier

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge, prove open at start, 8 sec pilot stabilization, 10 sec m…

Relay for Multiflame

Flame sensor module (220 VAC), UV/Self check UV, or FR to be used with stand-alone wiring base (60-2726).

Chassis UV Amplifier 120V

Quartz lens assembly for 45UV5 scanners.

120 VAC, 50/60 Hz Chassis with interface to ED510, interface to E500 Communication Interface and Modbus capability.

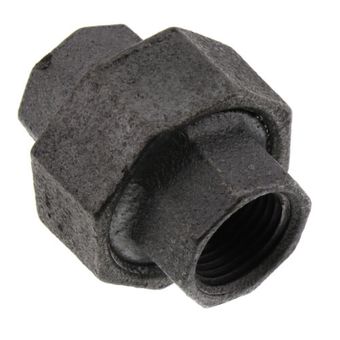

Union with quartz window, ½” for UV1A.

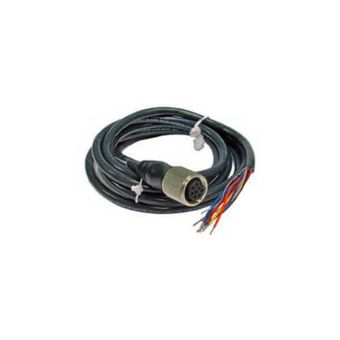

Factory wired cable assembly (59-598) for Simplicity quick disconnect version. 6 meters / 20 ft.

19” adapter (120 VAC) to retrofit 25SU3-2000, -2100 to 60-1706 rack.

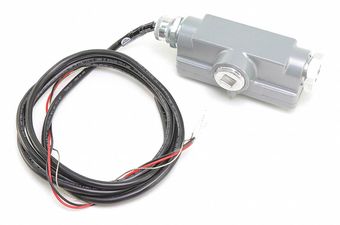

UV Scanner Explosion Proof 6 ft

25SU5-5011, -5012, -5013 wiring base.

Programmer, Selectable TFI timing, purge timing, post purge, prove open at start, 8 sec pilot stabilization, 10 sec main trial for ignition, with l…

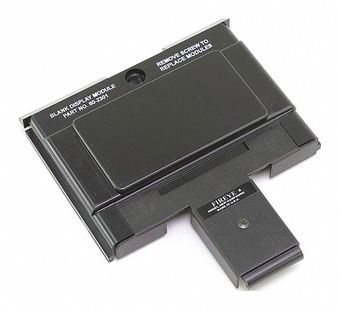

Blank display module.

230 VAC Chassis. Meets European EN230, EN298 approval.

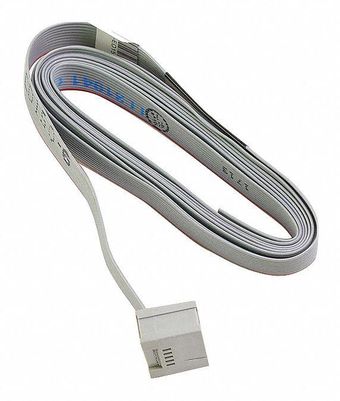

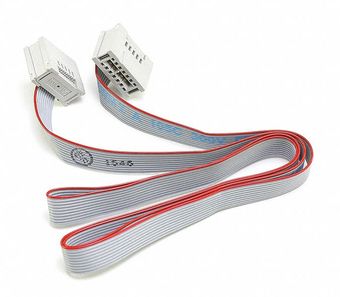

Remote Display Cable 3 ft

Programmer, Selectable recycle/non-recycle function, TFI timing, purge timing, post purge (30 sec max), prove open at start, 10 sec main trial for …

Programmer, Selectable recycle/non-recycle function, TFI, and purge timing. Pilot cutoff, check-run switch.

Interlock Annunciator 120V

VFD Interface Board

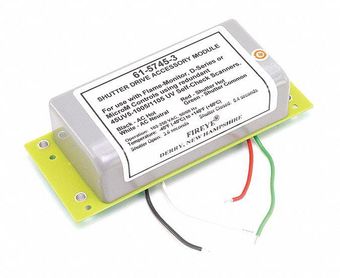

Shutter Control Module

Program Module-Spanish Language

Programmer. Selectable purge (30 sec min.), pilot stabilization, non-recycle, 10 and 15 sec TFI programmer.

Programmer. Selectable purge, selectable TFI, non-recycle, French language.
