Schneider Electric LRD03

Name: Schneider Electric LRD03
Brand: Schneider Electric
SKU: CS958534
Availability: OutOfStock

SKU: CS958534MPN: LRD03Alternate Part #: SQD-LRD03

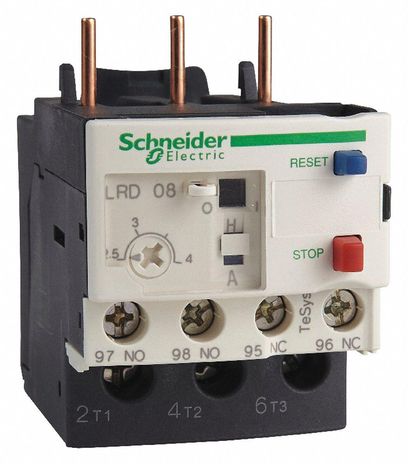

Thermal overload relay, TeSys Deca, 690VAC, 0.25 to 0.4A, 1NO+1NC, class 10A, screw clamp

Product Details

TeSys LRD Thermal Overload Relay

Thermal Protection Adjustment Range: 0.25-0.4 A* System Voltage: 690VAC 0-400Hz* Control Type: Red push-button stop, Blue push-button reset mode* Degree of Protection: IP20

Ambient Air Temperature For Storage	-60-70 °C
Auxiliary Contact Composition	1 NO + 1 NC
Device Short Name	LRD
Network Frequency	0…400 Hz
Network Type	AC# #DC
Product Certifications	IEC# #UL# #CSA# #CCC# #EAC# #BV# #RINA# #DNV-GL# #LROS (Lloyds register of shipping)# #ATEX INERIS# #UKCA
Product Compatibility	LC1D25# #LC1D18# #LC1D38# #LC1D12# #LC1D32# #LC1D09
Product Name	TeSys LRD# #TeSys Deca
Product Or Component Type	differential thermal overload relay
Range	TeSys# #TeSys Deca
Relay Application	motor protection
Standards	EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #GB/T 14048.4# #GB/T 14048.5# #EN 50495
Temperature Compensation	-20-60 °C
Thermal Protection Adjustment Range	0.25-0.4 A
