Square D LR3D365

Name: Square D LR3D365
Brand: Square D
SKU: CS4811756
Availability: OutOfStock

SKU: CS4811756MPN: LR3D365

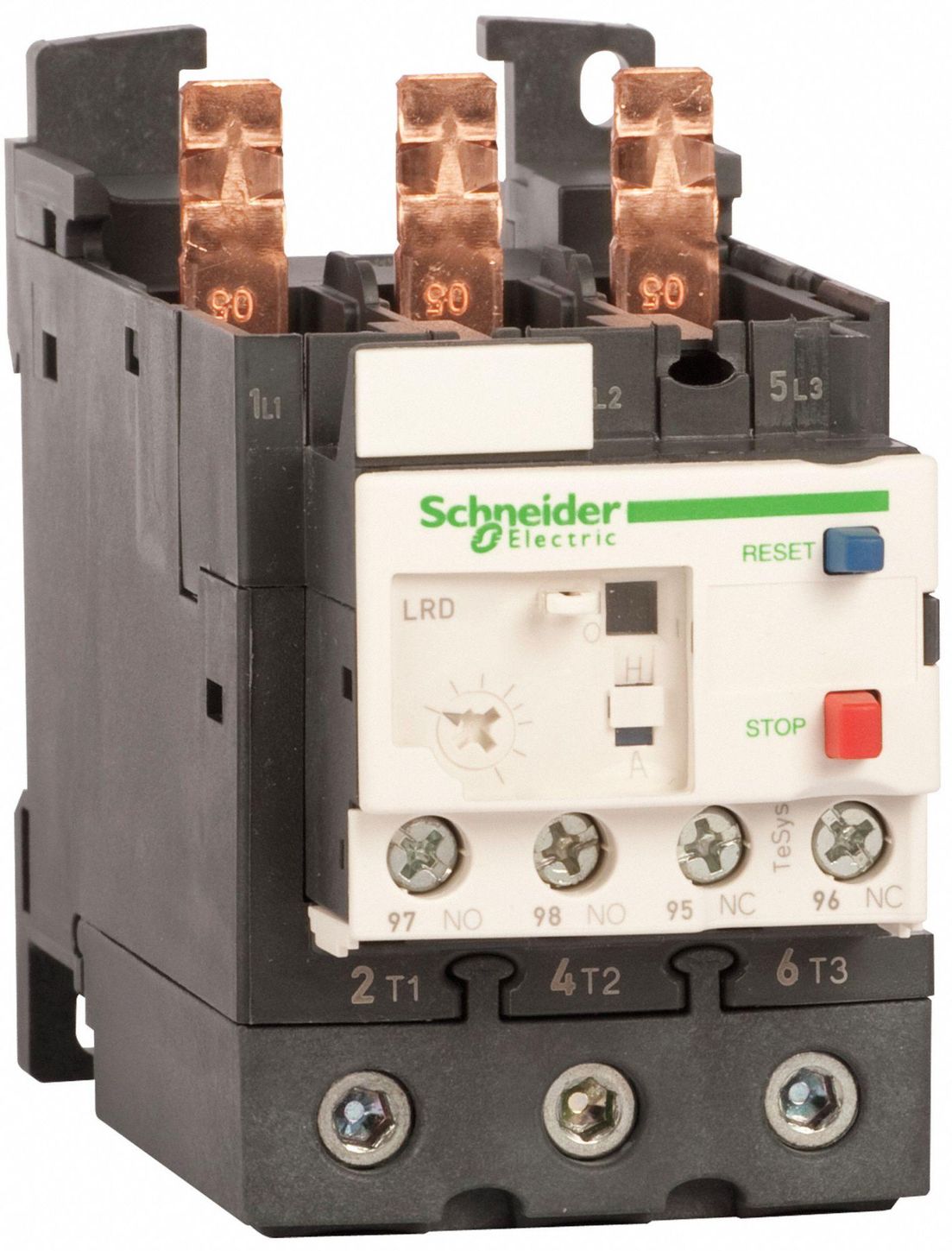

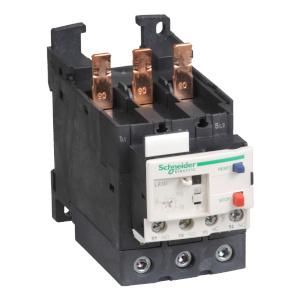

Thermal overload relay, TeSys Deca, 690VAC, 48 to 65A, 1NO+1NC, class 10A, for unbalanced loads

Product Details

TeSys LRD thermal overload relays - 48...65 A, class 10A

Ambient Air Temperature For Storage	-60-70 °C
Auxiliary Contact Composition	1 NO + 1 NC
Device Short Name	LR3D
Network Frequency	0…400 Hz
Network Type	DC# #AC
Product Certifications	IEC# #UL# #CSA# #CCC# #EAC# #DNV-GL# #RMRS# #EU-RO MR# #LROS (Lloyds register of shipping)# #UKCA
Product Compatibility	LC1D50A# #LC1D65A
Product Name	TeSys LRD# #TeSys Deca
Product Or Component Type	non differential thermal overload relay
Range	TeSys# #TeSys Deca
Relay Application	motor protection
Standards	EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #GB/T 14048.4# #GB/T 14048.5
Temperature Compensation	-20-60 °C
Thermal Protection Adjustment Range	48-65 A
