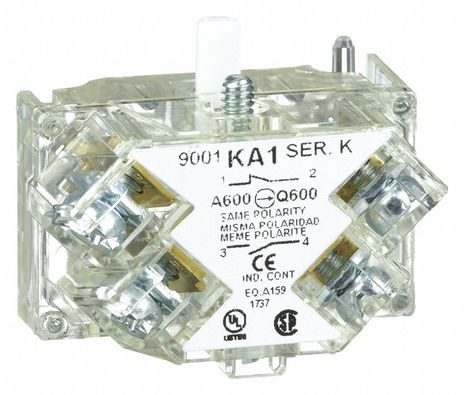

Square D 9001KA1
SKU: CS956415MPN: 9001KA1UPC/EAN: 785901880004
Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO
$40.37
Unit20 in stock
Product Details
30mm Contact Block (SQD-9001KA1):
- Ampere Rating: 10A* Approvals: UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked* Contact Configuration: Standard (Fingersafe)* Maximum Voltage Rating: 600V* Size: 30mm* Terminal Type: Screw Clamp* Type: K
Attributes
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Operation 1 | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Contact Operation | standard |
| Contacts Material | silver alloy contacts |
| Contacts Type And Composition | 1 C/O |
| Device Short Name | 9001K |
| Product Certifications | NEMA# #UL 508 |
| Product Or Component Type | contact block with protected terminals |
| Protective Treatment | TC |
| Range Of Product | Harmony 9001K |
| Standards | EN/IEC 60947-5-1# #JIS C 4520# #UL 508# #EN/IEC 60947-1# #JIS C 852# #CSA C22.2 No 14# #EN/IEC 60947-5-4 |
Specifications
| SKU | CS956415 |
|---|---|
| MPN | 9001KA1 |
| UPC/EAN | 785901880004 |
